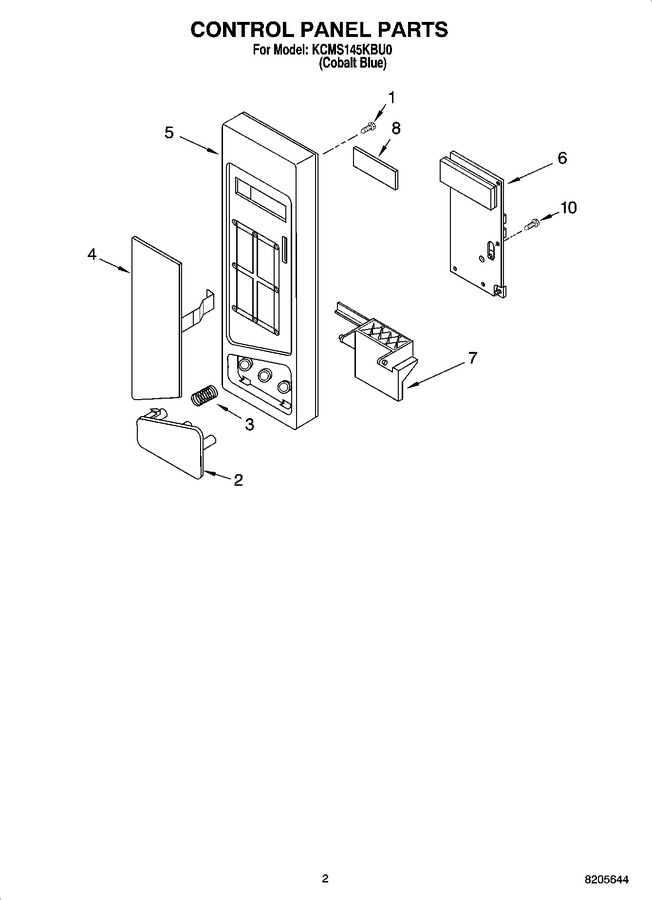

02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358381 | Screw |
|
- | |||||
| 2 | 8172030 | Release Button |
|
- | |||||
| 3 | 4158178 | Spring, Button |
|
$ 5.83 | |||||
| 4 | 8183627 | Key Membrane |
|
- | |||||
| 5 | 4359851 | Control Panel |
|
- | |||||
| 6 | 8183861 | P.c.b Sub Assembly |
|
- | |||||
| 7 | 4359718 | Lever, Release |
|
- | |||||
| 8 | 4359720 | Lens |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
