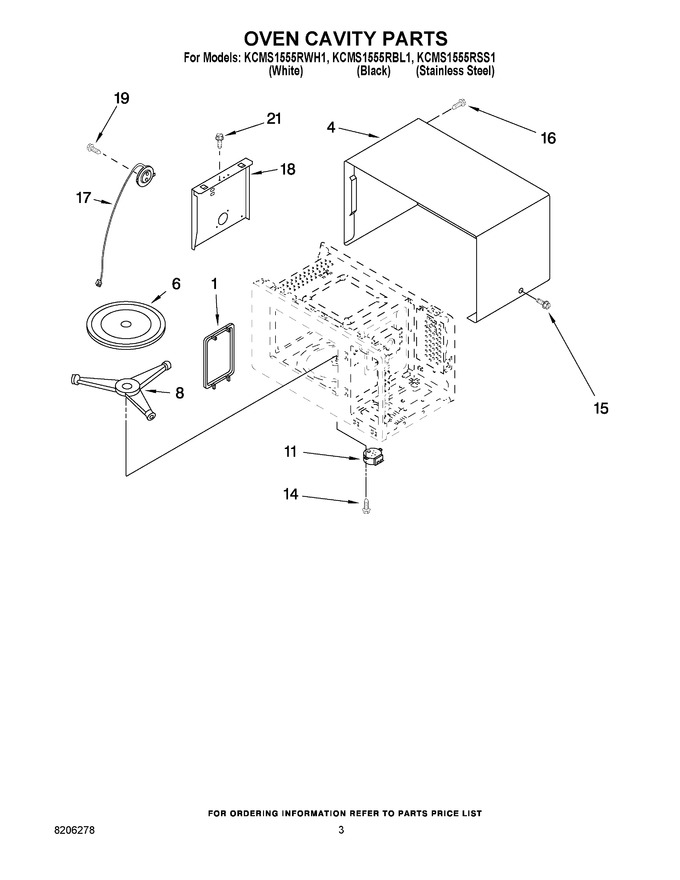

03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184278 | Canopy |
|
$ 27.95 | |||||
| 4 | 8205453 | Outer Case (white) |
|
- | |||||
| 4 | 8205801 | Outer Case (black) |
|
- | |||||
| 4 | 8205818 | Outer Case (stainless) |
|
- | |||||
| 6 | WPW10267856 | Tray, Glass (Replaces: 4359780) |
|
$ 63.44 | |||||
| 8 | 8205148 | Turntable Support |
|
$ 46.46 | |||||
| 11 | WPW10159107 | Motor, Synchronous (Replaces: 8184375) |
|
$ 160.07 | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | 4358829 | Screw (black Model) |
|
- | |||||
| 15 | W11245710 | Screw (white & Ss Models) (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 16 | 8171862 | Screw |
|
- | |||||
| 17 | 8183514 | Sensor, Humidity |
|
$ 110.06 | |||||
| 18 | 8205457 | Guide, Sensor |
|
- | |||||
| 19 | 4358376 | Screw |
|
- | |||||
| 21 | 4358192 | Screw |
|
- |
