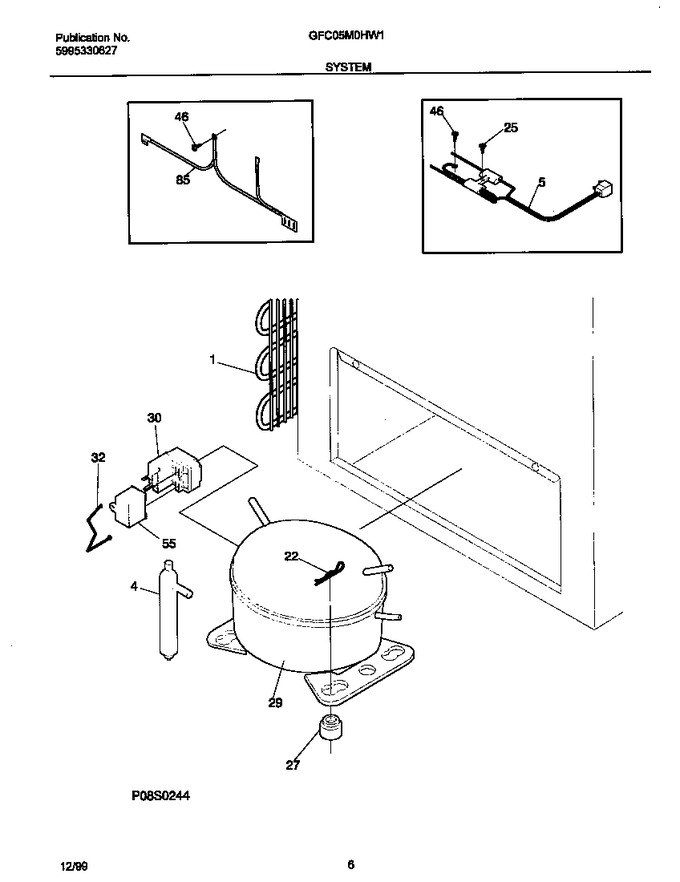

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300120779		Condenser		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216696400		Harness-electrical				$ 93.82
22	216056400		Clip, Spring Mtg		Appelez-nous	-
25	216707700		Screw,8-18 X 1/2		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304443412		Compressor,w/o Electricals   (Replaces: 216696600)				$ 856.23
30	216649304		Controller				$ 98.86
32	216694500		Clip,controller		Appelez-nous	-
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
55	297286812		Capacitor-run,180 Vac ,15 Microfarad   (Replaces: 216696700)			Immediately	$ 11.78
85	216533100		Wire,ground		Appelez-nous	-
*69481	216478900		Fastener, Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
