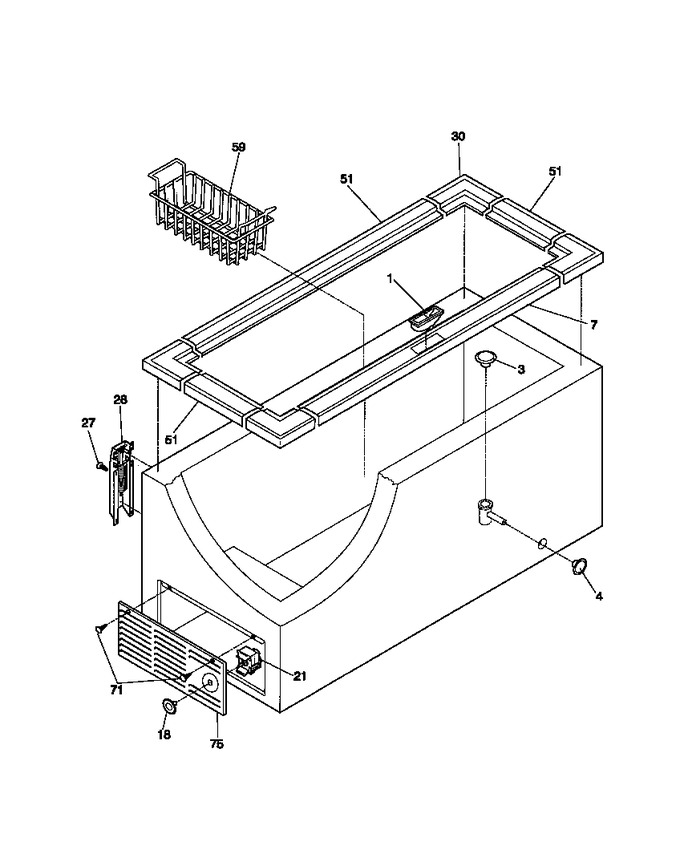

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117701		Support, Lock		Appelez-nous	-
3	5306593887		Plug, Drain, Liner		Appelez-nous	-
4	216073902		Plug, Drain		Appelez-nous	-
7	216105801		Breaker, Almond, Lock Side		Appelez-nous	-
18	216034506		Knob,control, Almond		Appelez-nous	-
21	216356800		Control, Temperature		Appelez-nous	-
27	5309950602		Screw Hinge				$ 5.30
28	216119102		Hinge Assy		Appelez-nous	-
30	216105501		Breaker, Almond, Corners		Appelez-nous	-
51	216117501		Breaker, Almond, Hinge/side		Appelez-nous	-
59	216848200		Basket   (Replaces: 216078600)				$ 53.21
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216329403		Panel,access, Almond		Appelez-nous	-
*38441	216154900		Wire, Ground		Appelez-nous	-
*38442	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
