Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216480801 Gasket-door, White Special Order $ 181.83

2 5303925134 Lock Assy Appelez-nous -
5 297147700 Key, Lock   (Replaces: 216388700) In-Stock Immediately $ 7.57

9 216061500 Panel-inner Door\lid, White Appelez-nous -
10 216141101 Plug Button, White Special Order $ 2.57

11 216106003 Panel-outer Door\lid,white Appelez-nous -
12 5303270969 Insert-handle Appelez-nous -
18 5309948646 Handle Appelez-nous -
27 5303212828 Screw, Panel Special Order $ 16.63

40 5309948647 Fastener, Handle Appelez-nous -
*67320 5303917276 Insulation-door, Fiberglass, (bulk) Special Order $ 330.91


    View Diagram in Separate Window     Print Icon   Print Part List

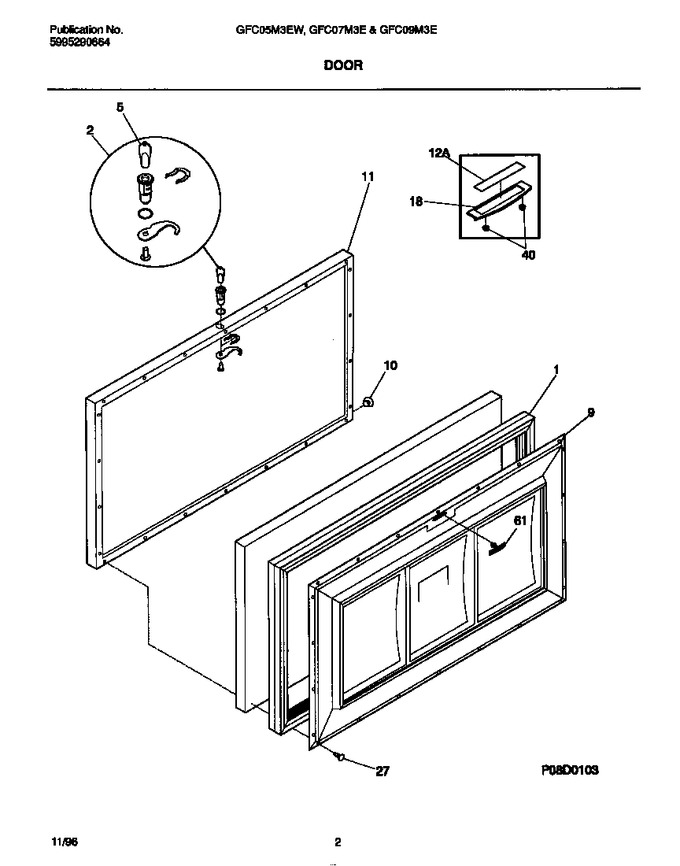

Diagram for GFC05M3EW1
