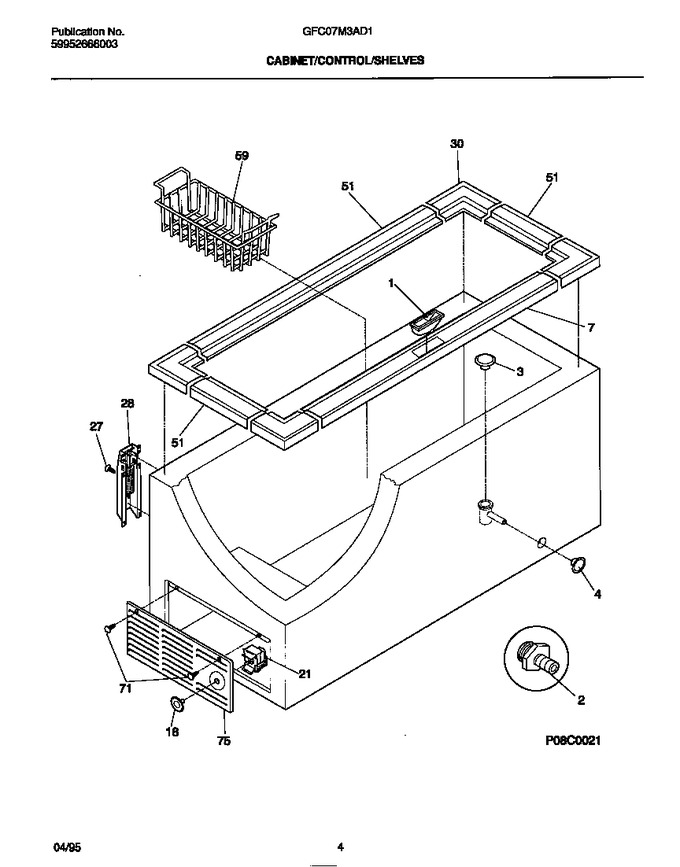

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117701		Support, Lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	5306593887		Plug-drain, White		Appelez-nous	-
4	216073902		Plug, Drain		Appelez-nous	-
7	216117601		Breaker, Almond, Lock Side		Appelez-nous	-
18	216034506		Knob,control, Almond		Appelez-nous	-
21	216356800		Control, Temperature		Appelez-nous	-
27	5309950602		Screw Hinge				$ 5.30
28	216119102		Hinge Assy		Appelez-nous	-
30	216105501		Breaker, Almond, Corners		Appelez-nous	-
51	216117501		Breaker, Almond, Hinge/side		Appelez-nous	-
59	216848200		Basket   (Replaces: 216078600)				$ 53.21
71	08006547		Screw		Appelez-nous	-
75	216329403		Panel,access, Almond		Appelez-nous	-
*43161	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
