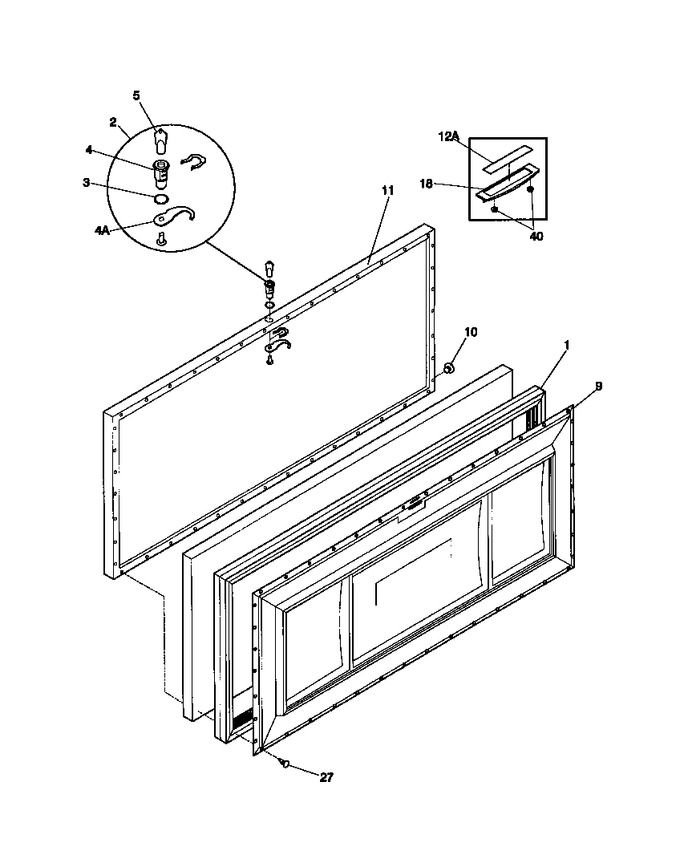

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5309950874 | Gasket-door, Almond |
|
- | |||||
| 2 | 5303925134 | Lock Assy |
|
- | |||||
| 3 | 5300114366 | Washer |
|
- | |||||
| 4 | 216078500 | Hook, Lock |
|
- | |||||
| 4 | 5303283905 | Cylinder, Lock |
|
- | |||||
| 5 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 9 | 216061601 | Panel-inner Lid, White |
|
- | |||||
| 10 | 216141102 | Plug, Hole |
|
- | |||||
| 11 | 5303925214 | Panel-outer Lid, White |
|
- | |||||
| 12 | 5303270969 | Insert-handle |
|
- | |||||
| 18 | 5309948646 | Handle |
|
- | |||||
| 27 | 5303212828 | Screw, Panel |
|
$ 16.63 | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| *92520 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
