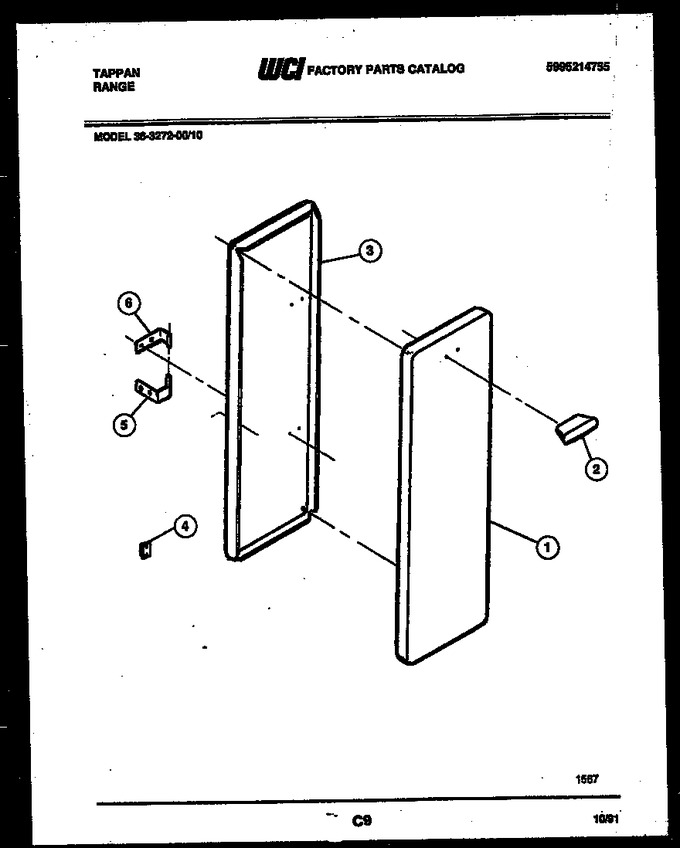

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 519T020W04-23 | Pnl Compartment-almond |
|
- | |||||
| 2 | 3587117P01 | Knob, Compartment Door |
|
- | |||||
| 3 | 381T068F03-18 | Liner, Compartment Door |
|
- | |||||
| 4 | 5303207538 | Latch-compartment Door |
|
- | |||||
| 5 | 302T028P01 | Hinge Door-lower/pin-mount To Chass |
|
- | |||||
| 6 | 302T027P01 | Hinge (mount To Door) |
|
- | |||||
| 2A | 789T053P18 | Washer W/ Padded Insert (non-illustrated) |
|
- |
