01 - Body
02 - Control Panel
03 - Door/drawer (ser. Pre. 10-14)
04 - Door/drawer (ser. Pre. 15)
05 - Gas Controls
06 - Oven/base
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

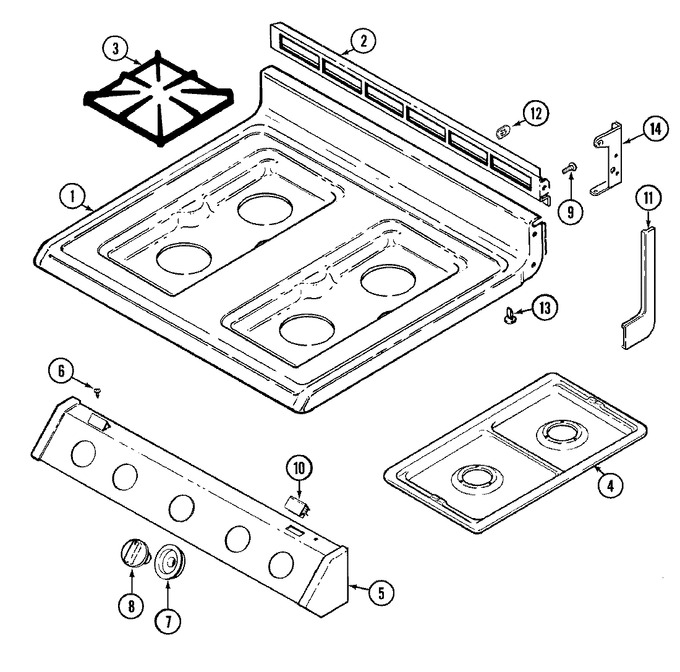

| 1 | 2001W085-81 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 10 |
|
- | ||||
| 3 | 2003W027-00 | Grate (blk) | 10 |
|
- | ||||
| 4 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- | ||||
| 5 | 7712P130-60 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 6 | 7101P329-60 | Screw | 10 |
|
- | ||||
| 7 | 7740P058-60 | Bezel, Knob (blk) | 10 |
|
$ 24.44 | ||||
| 8 | WP74003781 | Knob, Valve (blk) (Replaces: 7733P084-60) | 10 |
|
$ 15.89 | ||||
| 9 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 10 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 11 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 11 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 11 | 8270P095-60 | Tape, Double Sided | 10 |
|
- | ||||
| 12 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 13 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 14 | 8114P348-60 | Cover, Hinge Support | 10 |
|
- | ||||
| 14 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 15 | 5120D019-60 | Harness, Spark Module/top | 10 |
|
- | ||||
| 15 | W10841090 | Clamp, Wire (Replaces: 7111P017-60) | 10 |
|
- | ||||
| 15 | 5125A312-60 | Harness, Loose/burner Box | 10 |
|
- |
