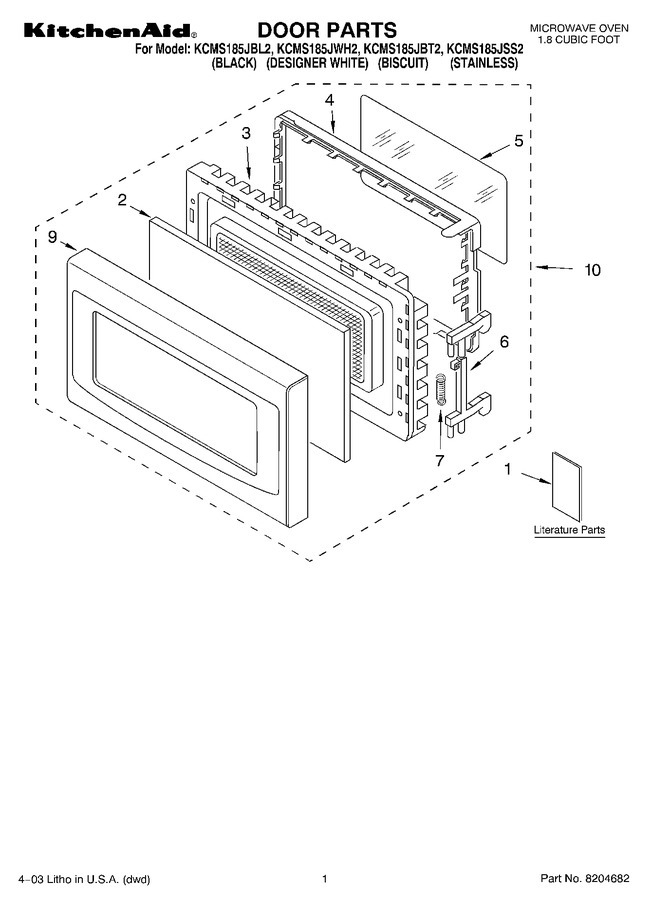

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8172187 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8172209 | Literature Parts (tech Sheet Instructions, Installation) |
|
- | |||||
| 1 | LIT8172220 | Literature Parts (template, B/i Kit) |
|
- | |||||
| 1 | LIT8172218 | Literature Parts (built-in Cook Guide Label) |
|
- | |||||
| 1 | LIT8172196 | Literature Parts (english) |
|
- | |||||
| 1 | LIT8172197 | Literature Parts (spanish) |
|
- | |||||
| 2 | 4359866 | Front Screen (bl/wh/bt Models) |
|
- | |||||
| 2 | 8172006 | Front Screen (ss Model) |
|
- | |||||
| 3 | 8184736 | Door Frame Asm (wh Model) |
|
- | |||||
| 3 | 8171890 | Door Frame Asm (bl/ss Models) |
|
- | |||||
| 3 | 8172086 | Door Frame Asm (bt Model) |
|
- | |||||
| 4 | 4359869 | Choke Cover |
|
- | |||||
| 5 | 4359870 | Tape, Seal |
|
- | |||||
| 6 | 4359765 | Latch |
|
- | |||||
| 7 | 4359707 | Spring, Latch |
|
- | |||||
| 9 | 8183716 | Panel, Door (stainless) |
|
- | |||||
| 9 | 8183653 | Panel, Door (biscuit) |
|
- | |||||
| 9 | 8183652 | Panel, Door (white) |
|
- | |||||
| 9 | 8183651 | Panel, Door (black) |
|
- | |||||
| 10 | 8183650 | Door Assembly (stainless) |
|
- | |||||
| 10 | 8183647 | Door Assembly (black) |
|
- | |||||
| 10 | 8183648 | Door Assembly (white) |
|
- | |||||
| 10 | 8183649 | Door Assembly (biscuit) |
|
- |
