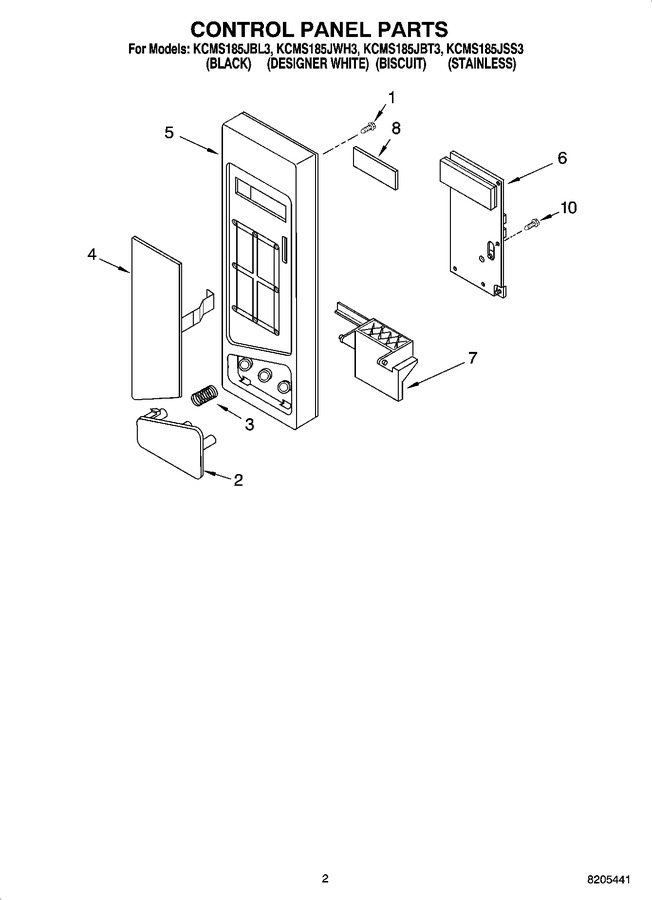

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358381 | Screw |
|
- | |||||
| 2 | 8172028 | Button, Release (white) |
|
- | |||||
| 2 | 4359937 | Button, Release (biscuit) |
|
- | |||||
| 2 | 8184881 | Button, Release (stainless) |
|
- | |||||
| 2 | 8172030 | Button, Release (black) |
|
- | |||||
| 3 | 4158178 | Spring, Button |
|
$ 5.83 | |||||
| 4 | 8183658 | Switch, Membrane (white) |
|
- | |||||
| 4 | 8183657 | Switch, Membrane (black) |
|
- | |||||
| 4 | 8183659 | Switch, Membrane (biscuit) |
|
- | |||||
| 4 | 8183660 | Switch, Membrane (stainless) |
|
- | |||||
| 5 | 8183654 | Control Panel (black) |
|
- | |||||
| 5 | 8183656 | Control Panel (biscuit) |
|
- | |||||
| 5 | 8184880 | Control Panel (stainless) |
|
- | |||||
| 5 | 8183655 | Control Panel (white) |
|
- | |||||
| 6 | 8183862 | Microcomputer |
|
- | |||||
| 7 | 4359718 | Lever, Release |
|
- | |||||
| 8 | 4359720 | Window |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
