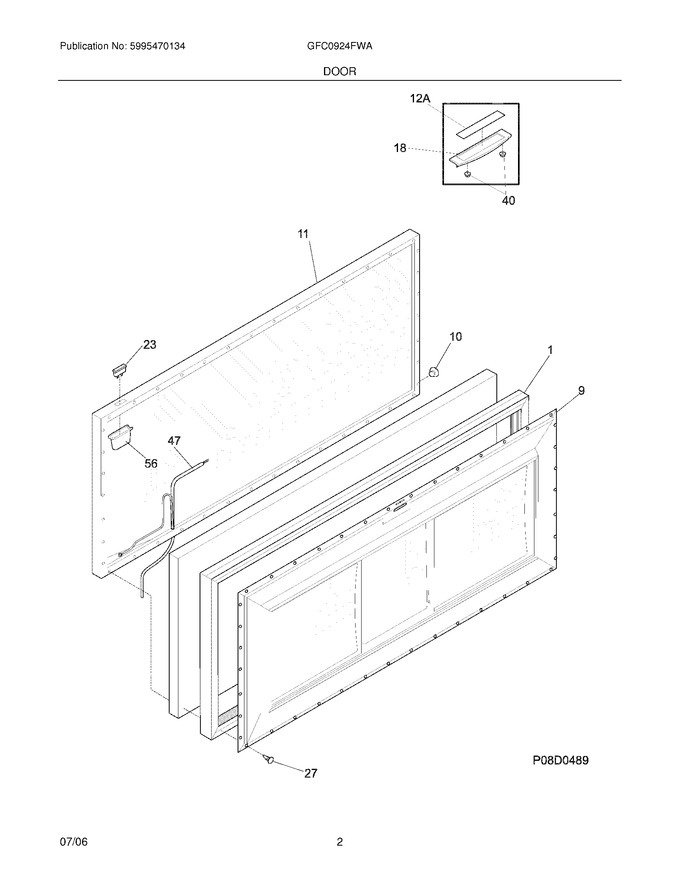

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481001 | Gasket-door, White |
|
$ 202.00 | |||||
| 9 | 216061802 | Panel-inner Lid,white |
|
$ 198.24 | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216117937 | Lid,white |
|
- | |||||
| 18 | 216446600 | Handle |
|
$ 43.42 | |||||
| 23 | 297087400 | Light,signal ,amber |
|
- | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 40 | 216922700 | Fastener,.330 Dia Stud ,handle ,(2) |
|
$ 12.05 | |||||
| 47 | 216823700 | Harness-lid/defrost |
|
$ 62.21 | |||||
| 56 | 297015600 | Cap,sig Light Seal |
|
- | |||||
| 12A | 216912600 | Insert-nameplate |
|
- | |||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 216858000 | Screw,thno.8-18x.500ab,no.10 |
|
- |
