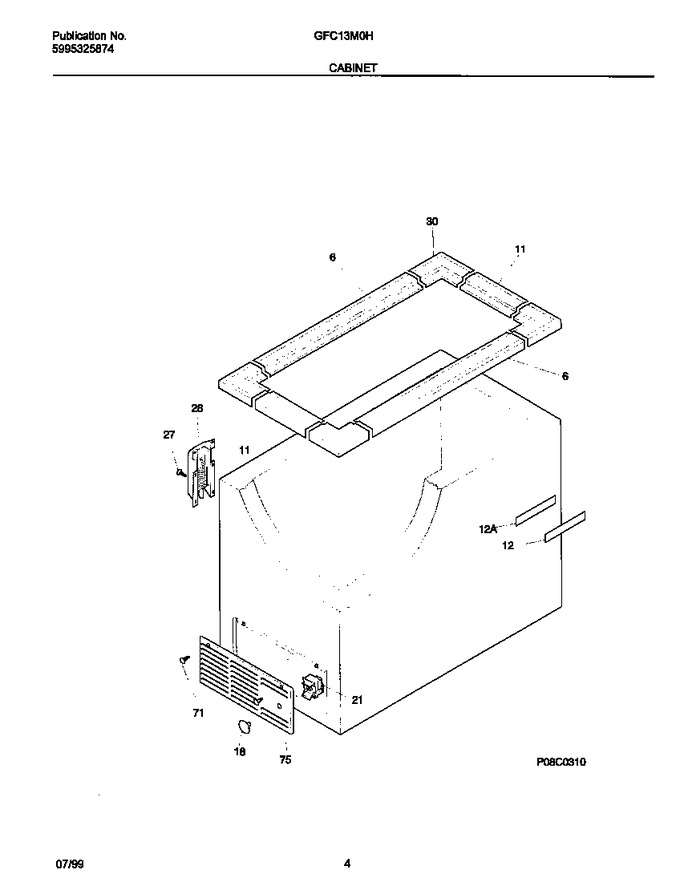

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	216110900		Breaker		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
12	216373000		Frame-nameplate				$ 4.04
12	316095403		Nameplate, Gibson, White		Appelez-nous	-
18	216591602		Knob,temp Control		Appelez-nous	-
21	216532100		Control-temperature				$ 9.70
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
*17881	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
