Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216481211 Gasket Lid-white   (Replaces: 216079900) Special Order $ 204.03

2 5303925107 Lock Assy Appelez-nous -
5 297147700 Key, Lock   (Replaces: 216388700) In-Stock Immediately $ 7.57

9 216057804 Panel-inner Door, White Special Order $ 140.44

10 216141101 Plug Button, White Special Order $ 2.57

11 216129900 Panel-outer Door,white Appelez-nous -
12 5303270969 Insert-handle Appelez-nous -
18 5309948646 Handle Appelez-nous -
27 5303212828 Screw, Panel Special Order $ 16.63

40 5309948647 Fastener, Handle Appelez-nous -
50 5303308306 Plug-button Appelez-nous -
*60120 5303917276 Insulation Special Order $ 330.91


    View Diagram in Separate Window     Print Icon   Print Part List

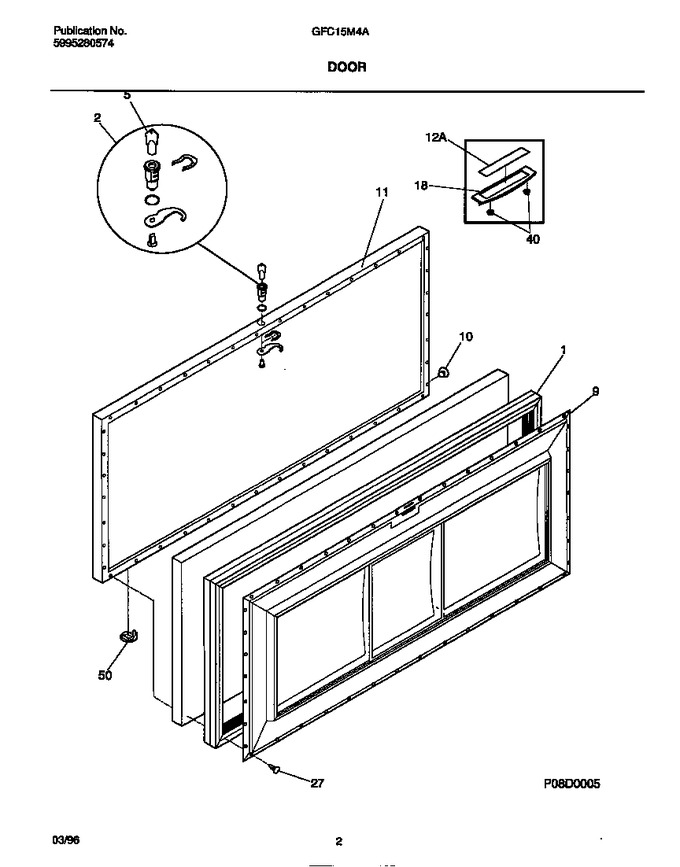

Diagram for GFC15M4AW3
