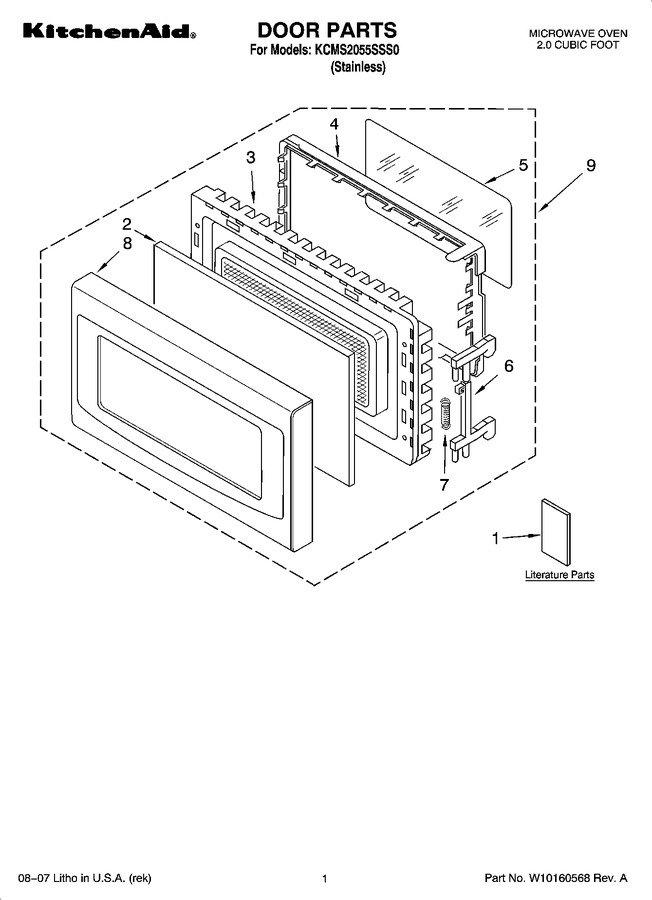

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10114100 | Guide, U & C |
|
- | |||||
| 1 | W10160564 | Tech Sheet |
|
- | |||||
| 1 | W10114101 | Cook Guide Label |
|
- | |||||
| 2 | W10160566 | Front Screen |
|
- | |||||
| 3 | W10160543 | Door Frame Asm |
|
- | |||||
| 4 | 8205777 | Choke Cover |
|
- | |||||
| 5 | W10160562 | Tape, Seal |
|
- | |||||
| 6 | 8184263 | Latch |
|
$ 5.65 | |||||
| 7 | 8183882 | Spring, Latch |
|
- | |||||
| 8 | W10160561 | Panel, Door |
|
- | |||||
| 9 | W10160557 | Door Assembly |
|
- |
