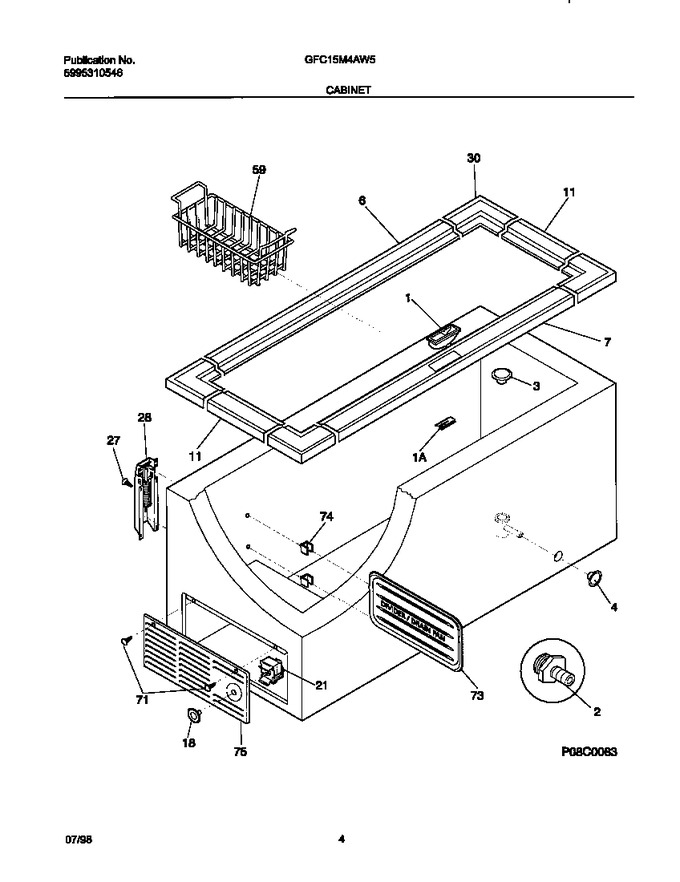

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
1	5303208488		Latch, Door		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216073900		Plug-drain,interior		Appelez-nous	-
4	216502600		Plug-drain,exterior			Immediately	$ 17.35
6	216111000		Breaker, Hinge Side		Appelez-nous	-
7	216111600		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
18	216591602		Knob,temp Control		Appelez-nous	-
21	216532100		Control-temperature				$ 9.70
27	216337700		Screw, Swage, Hwh 20-24 X .500		Appelez-nous	-
28	297321900		Hinge   (Replaces: 216035200)				$ 90.01
30	216110700		Breaker,white ,corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
73	216128200		Divider-drain Pan		Appelez-nous	-
74	5306594584		Support, Shelf				$ 19.80
75	216034301		Panel-access, White				$ 103.01
*28081	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
