SELECT A DIAGRAM
01 - Door Parts

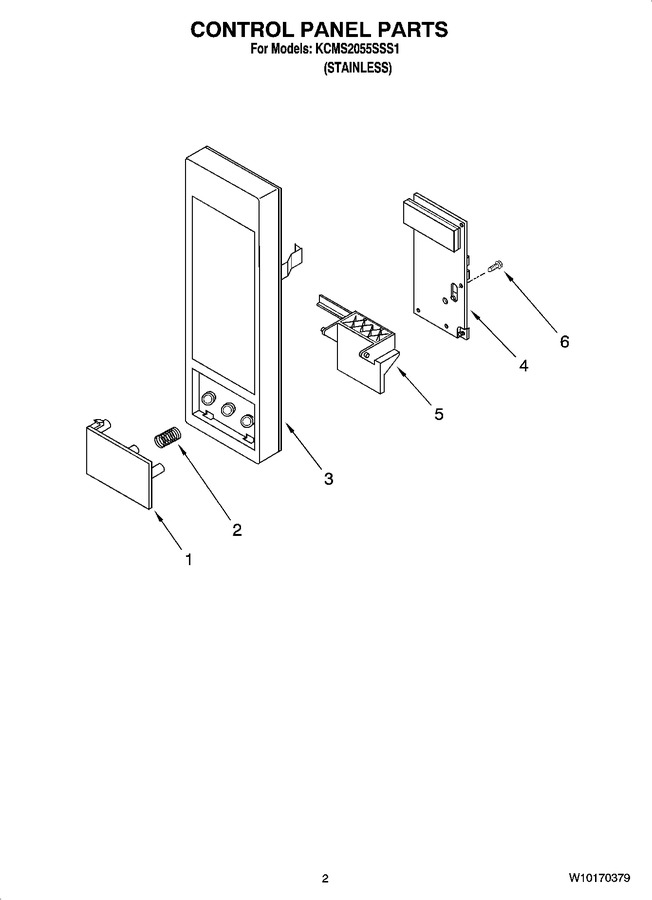

02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10170366 | Button, Release |
|
$ 68.51 | |||||
| 2 | 8184272 | Spring, Button |
|
- | |||||
| 3 | W10170365 | Membrane/panel |
|
- | |||||
| 4 | W10160555 | Microcomputer |
|
- | |||||
| 5 | WP8205451 | Lever, Release (Replaces: 8205451) |
|
Immediately | $ 72.66 | ||||
| 6 | 4358883 | Screw |
|
- |
