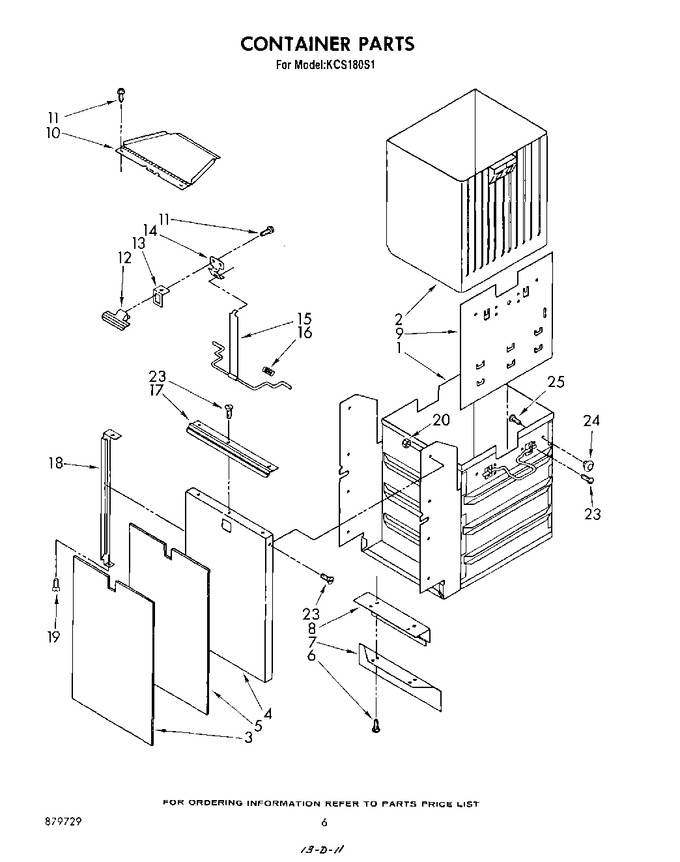

1	4161544		Container		Appelez-nous	-
2	4161337		Liner, Container		Appelez-nous	-
3	4178037		Panel, Container (white & Almond)		Appelez-nous	-
3	4178039		Panel, Container (harvest Gold & Black)		Appelez-nous	-
4	4178051		Front, Container		Appelez-nous	-
5	4162880		Filler, Panel		Appelez-nous	-
6	WP3390631		Screw, 8 X 3/8   (Replaces: 4159184)				$ 7.04
7	4161232		Plate, Toe		Appelez-nous	-
8	4161152		Bracket, Toe Plate		Appelez-nous	-
9	4161187		Plate, Releif		Appelez-nous	-
10	4161525		Cover, Storage		Appelez-nous	-
11	4159387		Screw, 10 X 3/8				$ 5.59
12	4161515		Handle, Pull		Appelez-nous	-
13	4162881		Bezel, Handle		Appelez-nous	-
14	4161542		Bracket, Handle		Appelez-nous	-
15	4162343		Latch, Container		Appelez-nous	-
16	4162739		Spring, Latch (right Side)		Appelez-nous	-
16	4162740		Spring, Latch (left Side)		Appelez-nous	-
17	4160981		Handle, Container		Appelez-nous	-
18	4161177		Trim, Front (bottom)		Appelez-nous	-
18	4161173		Trim, Front (right Side)		Appelez-nous	-
18	4161176		Trim, Front (left Side)		Appelez-nous	-
19	4159439		Screw, 10-32 X 5/16		Appelez-nous	-
20	WP776338		Nut, 10-32   (Replaces: 4159105)				$ 17.42
23	4159350		Screw, 10-32 X 5/16 (2)		Appelez-nous	-
24	4161099		Retainer, Bag (4)		Appelez-nous	-
25	4159364		Screw, 8 X 5/16 (4)		Appelez-nous	-
