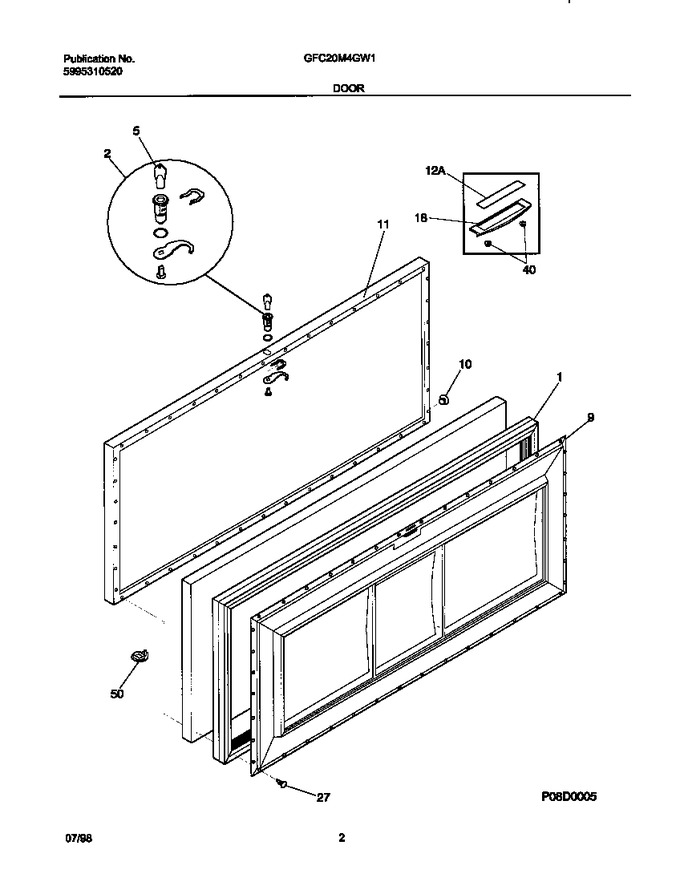

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481401		Gasket-door, White				$ 165.32
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216059604		Panel-inner Lid, White				$ 121.17
10	216141101		Plug Button, White				$ 2.57
11	216130100		Panel-outer Door/lid,white		Appelez-nous	-
12	5303270969		Insert-handle		Appelez-nous	-
18	5309948646		Handle		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
40	5309948647		Fastener, Handle		Appelez-nous	-
50	5303308306		Plug-button		Appelez-nous	-
*10640	5303917276		Insulation				$ 330.91
