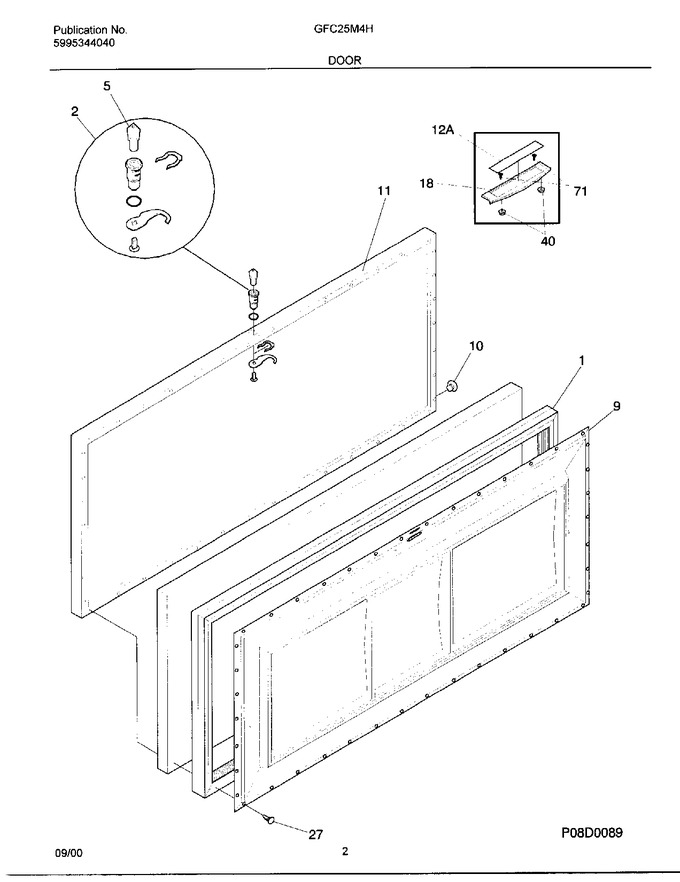

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216469311 | Gasket-door, White (Replaces: 216469301) |
|
$ 187.21 | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 9 | 216072604 | Panel-inner Lid, White |
|
- | |||||
| 10 | 216141101 | Plug Button, White |
|
$ 2.57 | |||||
| 11 | 216032402 | Panel-outer Door/lid,white |
|
- | |||||
| 18 | 5309948646 | Handle |
|
- | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 71 | 5303302714 | Screw, 8, 18 X 3/4, (2) |
|
- | |||||
| 12A | 5303270969 | Insert-handle |
|
- | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216388700) |
|
Immediately | $ 7.57 | ||||
| NI | 5303917276 | Insulation |
|
$ 330.91 |
