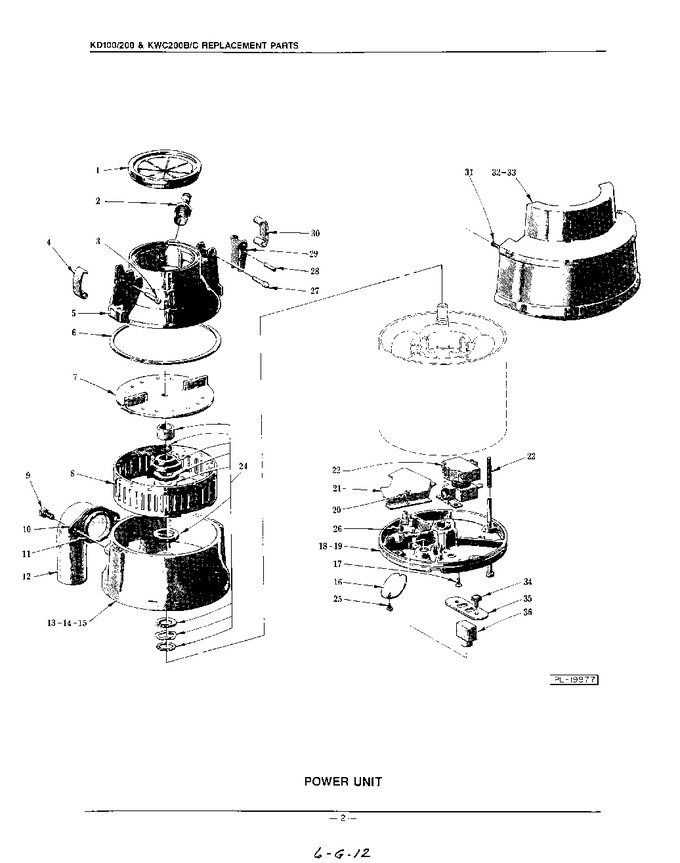

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242652		Guard - Splash		Appelez-nous	-
2	240758		Connector - Male Hose		Appelez-nous	-
3	PG-8-2		Groov-pin - Type C Driv-loc, 1/8`` X 1-1/4``		Appelez-nous	-
4	202514		Hook - Clamp		Appelez-nous	-
5	110974-9		Housing - Upper (gray)		Appelez-nous	-
6	201424		Gasket - Waist		Appelez-nous	-
7	242132-1		Flywheel Assy		Appelez-nous	-
8	115137-2		Ring - Shredder		Appelez-nous	-
9	SC-36-14		Cap Screw - 1/4-20 X 1/2 Hex Hd		Appelez-nous	-
10	241026		Flange - Spout		Appelez-nous	-
11	115818		Seal - Spout		Appelez-nous	-
12	240119		Spout & Seal Assy. (incls. Item 11)		Appelez-nous	-
13	110399-26		Lower Housing Assy. (gray) (kd100/kd200)		Appelez-nous	-
14	110399-25		Lower Housing Assy. (gray) (hobart Motor) (kwc200c)		Appelez-nous	-
15	110399-24		Lower Housing Assy. (g.e. Motor) (kwc200b/c)		Appelez-nous	-
16	109923		Cover - Elec. Access		Appelez-nous	-
17	SC-14-88		Mach. Screw 8-32 X 1/4 Flat Hd		Appelez-nous	-
18	243147-2		Bearing Bracket Assy. (gray) (hobart Motor)		Appelez-nous	-
19	243147-1		Bearing Bracket Assy. (g.e. Motor)		Appelez-nous	-
20	SD-12-30		Self-tapping Screw 6-32 X 5/16 Phil. Pan Hd., Type T		Appelez-nous	-
21	115314		Barrier - Electrical Enclosure		Appelez-nous	-
22	87714-17-1		Relay (115 V., 60 Hz.)		Appelez-nous	-
23	243173		Screw - Stator		Appelez-nous	-
24	240593-2		Water Seal Service Kit		Appelez-nous	-
25	SD-12-30		Self-tapping Screw 6-32 X 5/16 Phil. Pan Hd., Type T		Appelez-nous	-
26	202559		Screw - Machine Grounding		Appelez-nous	-
27	PG-8-2		Groov-pin - Type C Driv-loc, 1/8`` X 1-1/4``		Appelez-nous	-
28	202917		Pin - Hinge		Appelez-nous	-
29	WP596669		Lever - Clamp   (Replaces: 202515)			Immediately	$ 7.56
30	202514		Hook - Clamp		Appelez-nous	-
31	115369		Self-tapping Screw 6-20 X 11/16 Phil. Pan Hd., Type B (kwc200b)		Appelez-nous	-
32	243184		Shell - Sound Barrier (front)		Appelez-nous	-
33	242006		Shell - Sound Barrier (punched) (rear)		Appelez-nous	-
34	278497		Screw Assy. (protector)		Appelez-nous	-
35	121403		Retainer - Protector		Appelez-nous	-
36	294681-4		Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
