01 - Cover

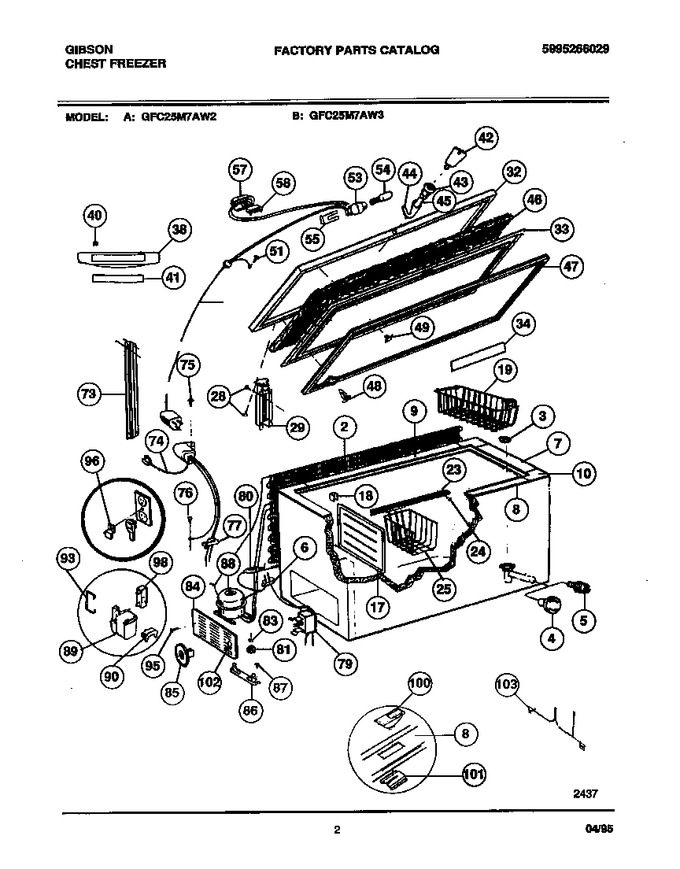

02 - Chest Freezer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5300300173		Condenser (not Original Equipment-service Replacement On		Appelez-nous	-
3	216037900		Plug-drain Liner		Appelez-nous	-
4	5306593887		Plug-drain Shell		Appelez-nous	-
5	216269500		Hose Adapter (not Original Equipment-customer Purchase O				$ 14.81
6	08016808		Grommet		Appelez-nous	-
7	216110800		Breaker Ends		Appelez-nous	-
8	216112000		Breaker Front		Appelez-nous	-
9	216111400		Breaker Rear		Appelez-nous	-
10	216110700		Breaker Corners				$ 28.45
17	216128200		Divider-drain Pan		Appelez-nous	-
18	5306594584		Supports Divider				$ 19.80
19	216080300		Basket (2)		Appelez-nous	-
23	216205100		Track-basket		Appelez-nous	-
24	5309950602		Screw Track				$ 5.30
25	216080700		Basket-lower (2)				$ 84.70
28	5309950602		Screw Hinge				$ 5.30
29	216035400		Hinge		Appelez-nous	-
32	216032401		Lid-panel		Appelez-nous	-
33	216072504		Panel-inner Lid		Appelez-nous	-
34	5303296969		Light Shield		Appelez-nous	-
38	5309950054		Handle		Appelez-nous	-
40	5309948647		Fastener		Appelez-nous	-
41	5303270969		Insert-handle		Appelez-nous	-
42	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
43	5303925107		Lock-complete		Appelez-nous	-
44	5300300791		Hook		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	5300128901		Insulation Lid		Appelez-nous	-
47	216469311		Gasket Lid-white   (Replaces: 216085600)				$ 187.21
48	5303212828		Clip Panel (51)				$ 16.63
49	5309948955		Clip-panel W/sig Light				$ 11.53
50	216206100		Wire Harness		Appelez-nous	-
51	216858001		Screw-ground Wire   (Replaces: 5303161215)			Immediately	$ 10.85
53	216039700		Socket-light		Appelez-nous	-
54	5304517886		Bulb-120v 25w   (Replaces: 216222700)			Immediately	$ 73.06
55	5306599968		Retainer Socket		Appelez-nous	-
57	5308037857		Cap-signal Light		Appelez-nous	-
58	5308002706		Signal Light				$ 39.11
74	216089400		Wiring Harn W/pwr Cord		Appelez-nous	-
75	08009412		Screw		Appelez-nous	-
76	08009412		Screw		Appelez-nous	-
77	5303212614		Clip Wires				$ 2.88
79	5304496560		Control Temperature   (Replaces: 5303212610)				$ 49.62
80	5303305677		Drier			Immediately	$ 31.67
81	215175000		Grommet Compr (4)		Appelez-nous	-
83	216056400		Clip Compr (4)		Appelez-nous	-
84	216022700		Access Panel		Appelez-nous	-
85	216034505		Knob-control		Appelez-nous	-
86	5303212615		Support Compr (2)		Appelez-nous	-
87	08016776		Screw-support (2)		Appelez-nous	-
88	216128300		Compressor		Appelez-nous	-
89	216008900		Relay		Appelez-nous	-
90	5303276514		Overload				$ 64.94
93	215012000		Clamp				$ 2.63
95	216858001		Screw-access Panel   (Replaces: 5303161215)			Immediately	$ 10.85
96	08016777		Retainer-power Cord (not Original Equipment-customer Pur		Appelez-nous	-
98	5303289028		Run Capacitor		Appelez-nous	-
100	5303208488		Latch		Appelez-nous	-
101	216080800		Support-latch		Appelez-nous	-
102	5303208663		Plug-indicator		Appelez-nous	-
103	5303294326		Wire-ground		Appelez-nous	-
