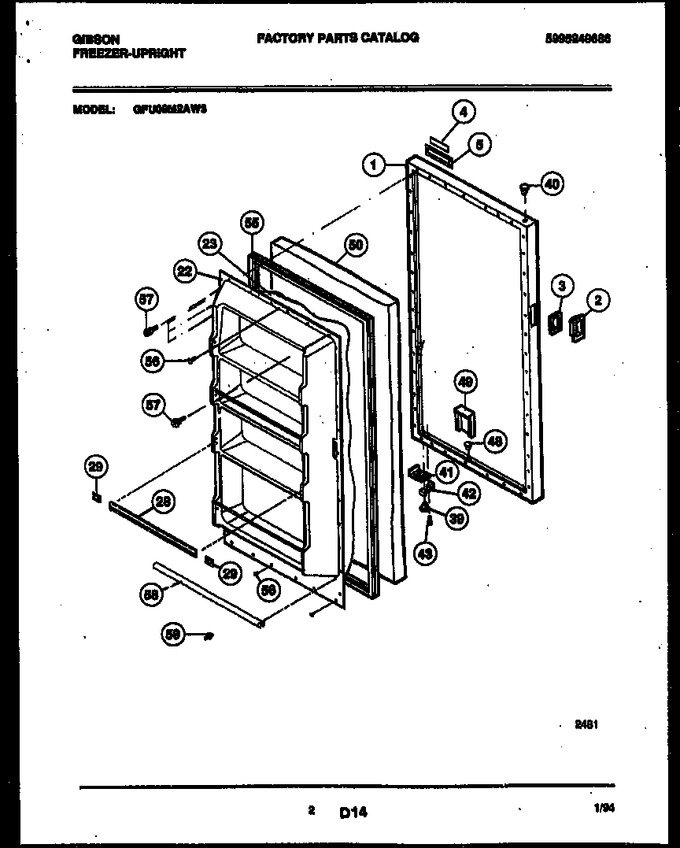

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216011201 | Panel-door-white |
|
- | |||||
| 2 | 21640200 | Handle-door |
|
- | |||||
| 3 | 08009392 | Gasket Handle |
|
- | |||||
| 4 | 5303208918 | Frame |
|
- | |||||
| 5 | 5303211086 | Nameplate |
|
- | |||||
| 22 | 216048408 | Panel Inner-white |
|
- | |||||
| 23 | 09950831 | Insulation |
|
- | |||||
| 28 | 216160500 | Shelf Front Narrow (4) |
|
- | |||||
| 29 | 5303298264 | End Cap (8) |
|
- | |||||
| 39 | 5303210403 | Bearing, Bottom |
|
- | |||||
| 40 | 5306593364 | Bearing-top |
|
- | |||||
| 41 | 5300091170 | Reinforcement, Door Stop |
|
- | |||||
| 42 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 43 | 08005520 | Screw-door Stop |
|
- | |||||
| 48 | 5309950074 | Valve Breather (2) |
|
$ 12.48 | |||||
| 49 | 5303212700 | Air Duct Breather |
|
- | |||||
| 50 | 5303007739 | Insulation, Door |
|
- | |||||
| 55 | 3206236 | Gasket Door-white |
|
$ 239.56 | |||||
| 56 | 216858001 | Screw-door Panel (20) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 57 | 216022800 | Screw-panel (16) |
|
- | |||||
| 58 | 08009385 | Gasket-white |
|
- | |||||
| 59 | 5303212828 | Clip, Gasket (5) |
|
$ 16.63 |
