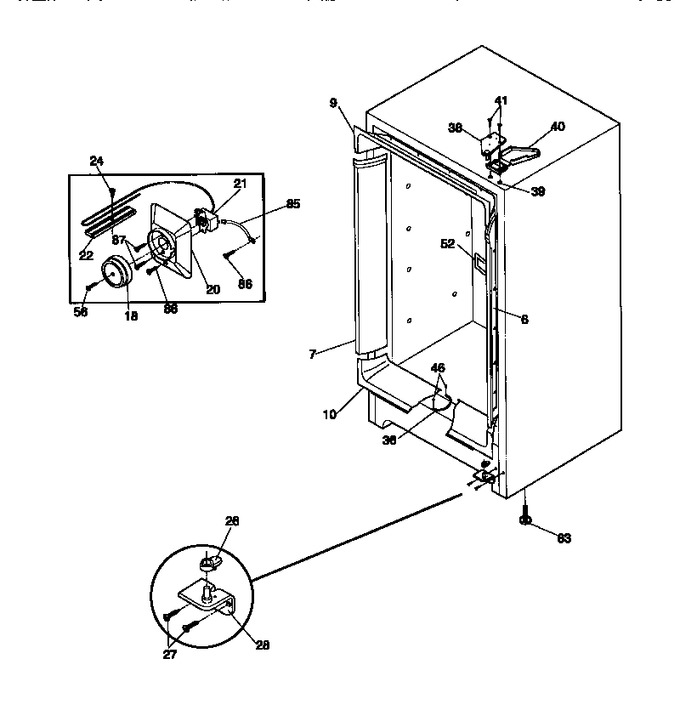

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	216102600		Breaker, Hinge Side		Appelez-nous	-
7	216102700		Breaker-lock Side		Appelez-nous	-
9	216073100		Breaker-top		Appelez-nous	-
10	216073000		Breaker-bottom		Appelez-nous	-
18	216008602		Knob-temp Control		Appelez-nous	-
20	5303288184		Cover-control Housing		Appelez-nous	-
21	216260400		Control-temperature				$ 178.23
22	08037931		Clamp, Cap Tube, Cold Control		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	5303210424		Ramp, Door		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1., Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
52	08037401		Retainer, Wire, Breaker				$ 2.85
56	09950853		Screw, Knob		Appelez-nous	-
63	205363701		Foot-adjustable		Appelez-nous	-
85	5300125347		Wire-ground, Temp Control		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
*65841	06594680		Clip, Breaker		Appelez-nous	-
*65842	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
*65843	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
