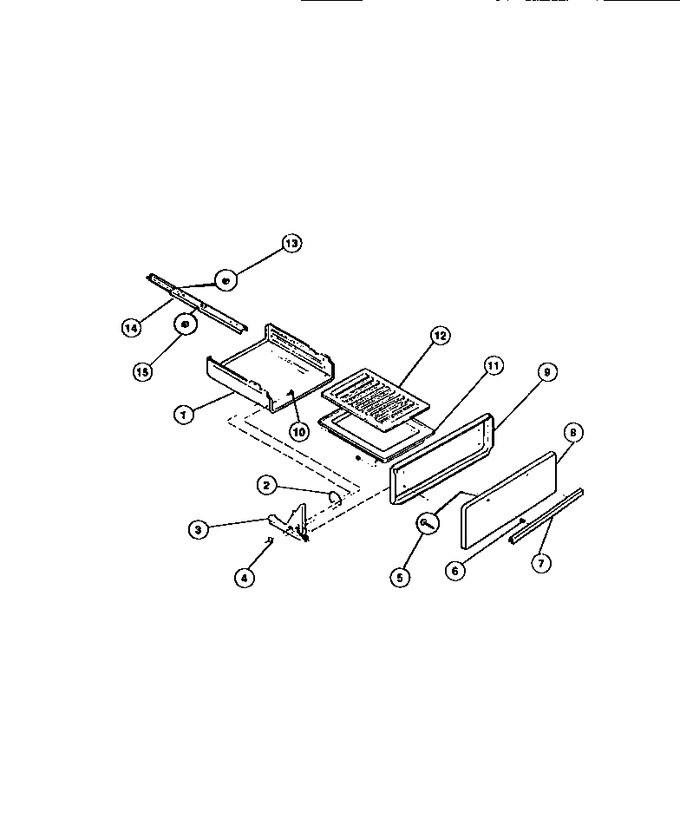

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	205T004W01-86		Drawer-broiler		Appelez-nous	-
2	3018618		Spring, Broiler Lh C Type		Appelez-nous	-
3	072T695F03-08		Brkt. Hinge Broiler (lh)		Appelez-nous	-
4	3131386		Fsntr. Push Nut (2)		Appelez-nous	-
5	636T147P01		Screw-handle Mtg (2)		Appelez-nous	-
6	789T053P12		Washer (2)		Appelez-nous	-
7	296T081P01		Handle		Appelez-nous	-
8	517T003T41-66		Panel Broiler Drwr.-wheat		Appelez-nous	-
9	381T077F04-86		Liner Broiler Drwr		Appelez-nous	-
10	3018614		Pin-hinge		Appelez-nous	-
11	3013568		Pan, Broiler		Appelez-nous	-
12	3131356		Insert, Broiler Pan		Appelez-nous	-
13	106T027P02		Button, Glide		Appelez-nous	-
14	136T281F05		Channel-glide (lower)		Appelez-nous	-
15	136T282F04		Channel Glide (upper)		Appelez-nous	-
16	106T028P01		Button Plug		Appelez-nous	-
2A	3018619		Spring, Broiler, Rh, C Type		Appelez-nous	-
3A	072T695F04-08		Brkt. Hinge Broiler (rh)		Appelez-nous	-
5A	328T015P15		Insulation (non-illustrated)		Appelez-nous	-
