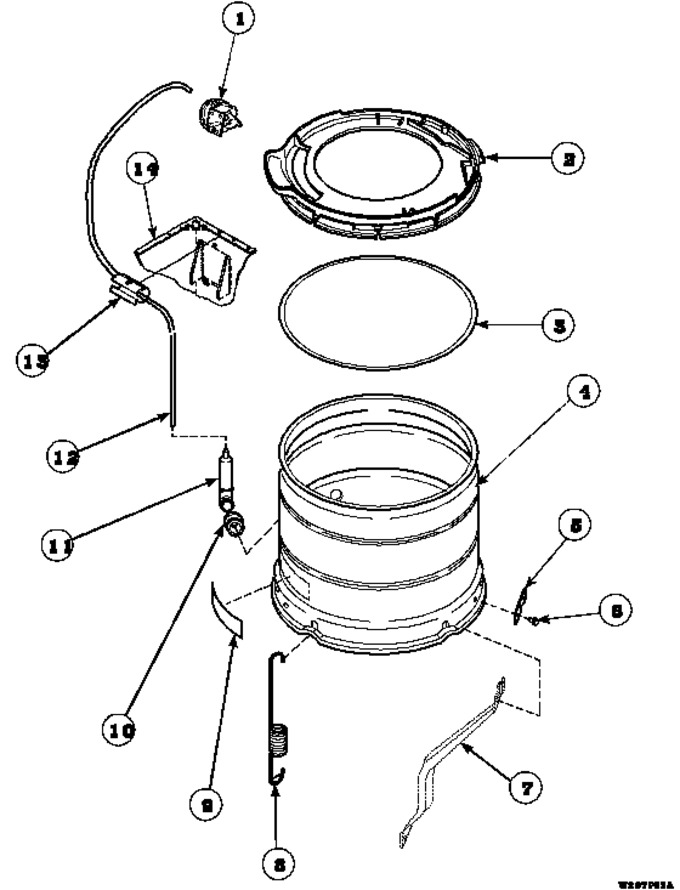

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	201927P		Pressure Switch   (Replaces: 36045)				$ 85.88
2	36025P		Assy, Tub Cover& Gasket				$ 137.10
3	32857		Gasket,tub Cover Small				$ 14.64
4	34438P		Assy, Outer Tub				$ 334.80
5	27926		Plate,leg .063		Appelez-nous	-
6	35369		Screw			Immediately	$ 6.95
7	34471		Leg,support				$ 6.42
8	35948		Spring,leg-large Tub		Appelez-nous	-
9	500049		Sticker		Appelez-nous	-
10	29175		Grommet				$ 8.56
11	COMM PART		Pressure Bulb   (Replaces: 30907)		Appelez-nous	-
12	29213		Pressure Hose		Appelez-nous	-
13	36985		Clip, Hose		Appelez-nous	-
14	34475P		Cabinet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
