SELECT A DIAGRAM

02 - Door


03 - Cabinet/control/shelves

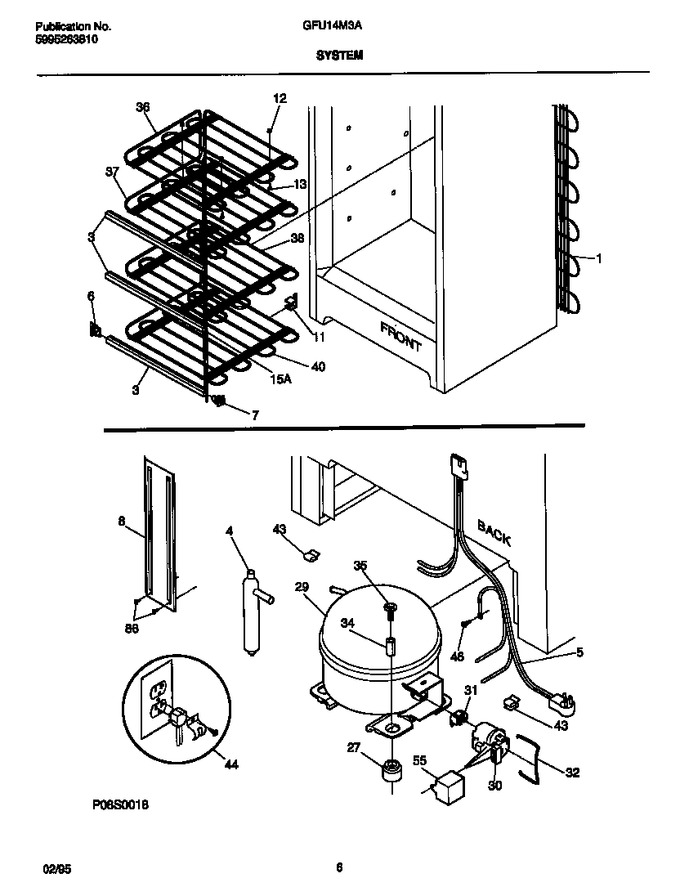

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
3	5304509722		Trim-shelf, Evaporator   (Replaces: 216097800)				$ 28.20
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216234500		Harness-wire		Appelez-nous	-
6	297001600		Support-shelf, Front Lh, (3)   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
8	216159300		Cover-wiring		Appelez-nous	-
11	216225600		Support-rear Shelf		Appelez-nous	-
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw, Hex Sems, 8, 18 X 1.00 Ab, Evap				$ 3.31
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5303925126		Compressor, Service		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303276514		Overload				$ 64.94
32	216147800		Wire-bale		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	297234400		Grid-top Evaporator   (Replaces: 216070100)				$ 369.42
37	216070200		Shelf-top Evaporator		Appelez-nous	-
38	216070300		Shelf-middle Evaporator		Appelez-nous	-
40	216070400		Shelf-bottom Evaporator		Appelez-nous	-
43	09950610		Clip		Appelez-nous	-
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
15A	08010753		Heat Exchanger Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
