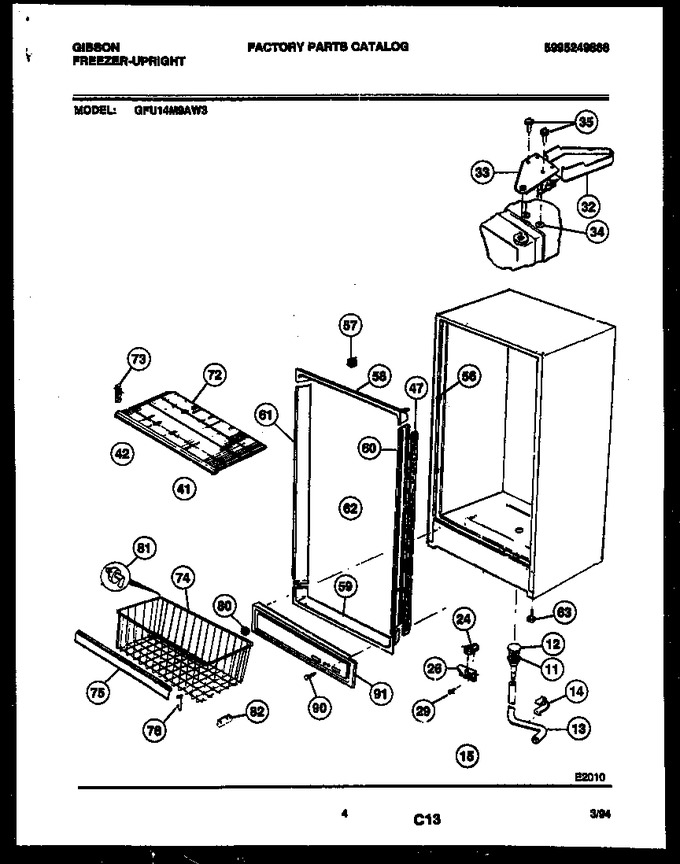

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	216269600		Hose-drain		Appelez-nous	-
14	216273000		Clamp-drain Hose				$ 22.42
15	216269500		Adapter, Drain Hose				$ 14.81
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	216247400		Hinge-bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303212935		Hinge, Top		Appelez-nous	-
34	5303294372		Nut Insert				$ 43.68
35	5303212937		Screw-hinge		Appelez-nous	-
41	216013700		Clip Lock		Appelez-nous	-
42	216013600		Support, Lock		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer-breaker (8)		Appelez-nous	-
58	216073300		Breaker Top		Appelez-nous	-
59	216073200		Breaker Bottom		Appelez-nous	-
60	216108601		Breaker-hinge		Appelez-nous	-
61	216108701		Breaker, Lock Side		Appelez-nous	-
62	5309918806		Switch, Light			Immediately	$ 21.97
63	205363701		Leveling Leg Adj. (4)		Appelez-nous	-
72	216076900		Dry Shelf		Appelez-nous	-
73	08016352		Support Dry Shelf (5)		Appelez-nous	-
74	216076601		Basket		Appelez-nous	-
75	216150500		Front-basket		Appelez-nous	-
76	09950862		End Cap		Appelez-nous	-
80	5305878546		Bumper (2)				$ 7.23
81	09948791		Stop, Basket		Appelez-nous	-
82	08009560		Glide Basket (4)				$ 35.25
90	5303302714		Screw-toe Grille (2)		Appelez-nous	-
91	216294309		Toe Grille		Appelez-nous	-
