SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet/control/shelves


04 - System

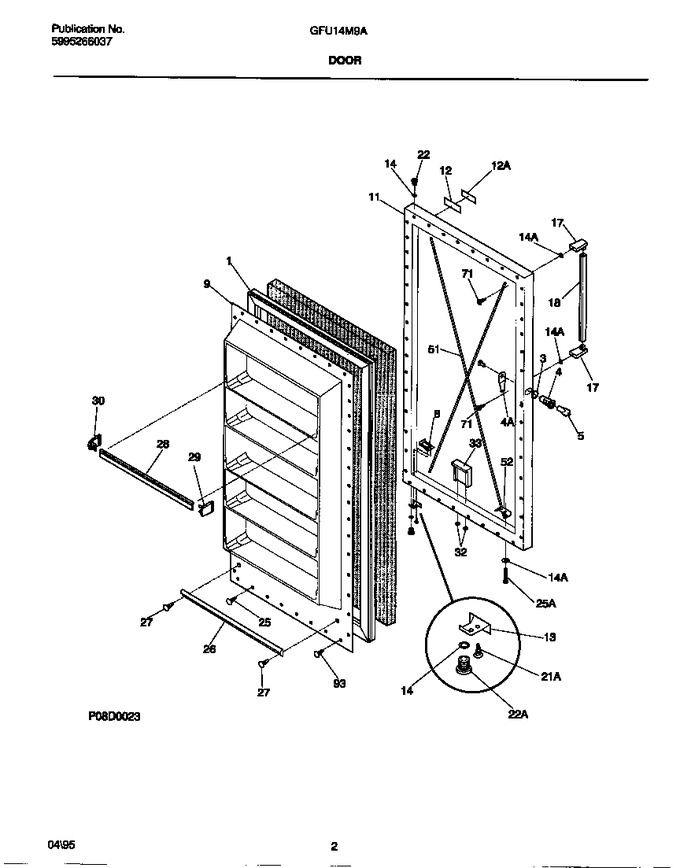

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206246		Gasket-door				$ 238.51
3	5300114366		Washer		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
4	216323600		Hook, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
8	5300091170		Reinforcement, Door Stop		Appelez-nous	-
9	216048711		Panel-inner Door, White		Appelez-nous	-
11	5303925144		Panel-outer Door, White		Appelez-nous	-
12	5303285574		Insert-bezel		Appelez-nous	-
12	5303303586		Bezel,nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303301500		Washer, Sealing		Appelez-nous	-
14	5303307087		Washer		Appelez-nous	-
17	3206058		End Cap-handle		Appelez-nous	-
18	5303208942		Handle, Center		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303925197		Bearing				$ 23.73
22	5303210403		Bearing		Appelez-nous	-
25	216365400		Screw, Adj Wire		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	5303300817		Gasket-secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216153200		Rack-shelf, White		Appelez-nous	-
29	216340000		End Cap, Wide, White, Rh		Appelez-nous	-
30	216340100		End Cap, Wide, White, Lh		Appelez-nous	-
32	5309950074		Breather-air Duct, Door				$ 12.48
33	5303212700		Air Duct		Appelez-nous	-
51	08037953		Wire-door Adjustmnt		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
71	08016582		Screw, Hi-lo Blunt, 8-18 X 1/2, Handle		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*93480	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
