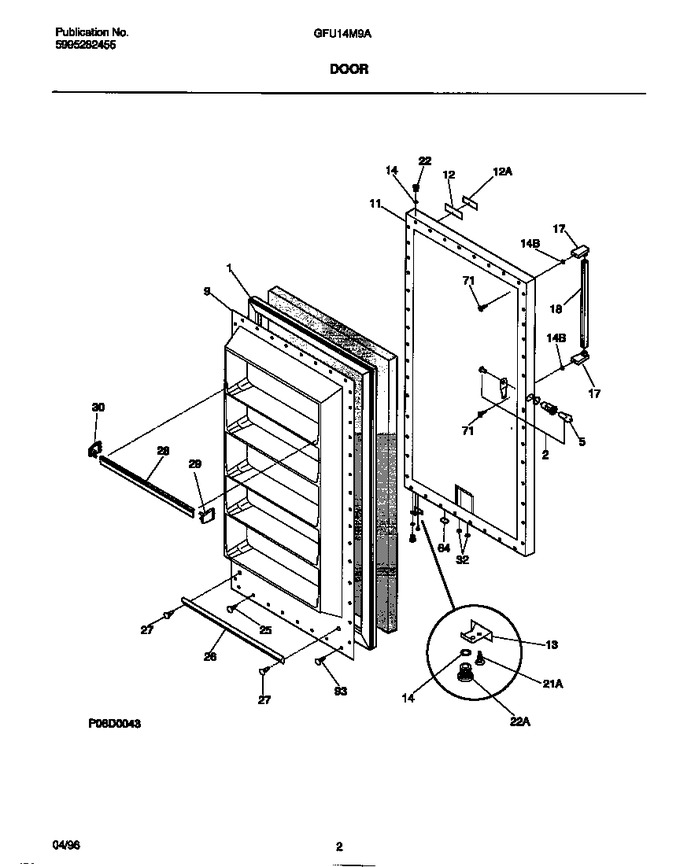

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206246		Gasket-door				$ 238.51
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216048715		Panel-inner Door, White		Appelez-nous	-
11	5303925422		Panel-outer Door Assy, W\foam Insul, White		Appelez-nous	-
12	5303303586		Bezel,nameplate		Appelez-nous	-
12	5303285574		Insert-bezel		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
14	5303311368		Washer, Flat		Appelez-nous	-
17	3206058		End Cap, White		Appelez-nous	-
18	5303208942		Handle, Center		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	216443600		Bearing				$ 0.68
22	5303210403		Bearing		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	5303300817		Gasket-secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216150600		Rack-shelf		Appelez-nous	-
29	216334300		End Cap-wide, Lh, (1)		Appelez-nous	-
30	216334200		End Cap-wide, Rh (1)				$ 39.80
32	216390000		Breather-air Duct, Door		Appelez-nous	-
64	216403700		Plug-buttom, Base Door				$ 58.12
71	08016582		Screw, Hi-lo Blunt, 8-18 X 1/2, Handle		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*33280	5303917276		Insulation				$ 330.91
