SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet/control/shelves


04 - System

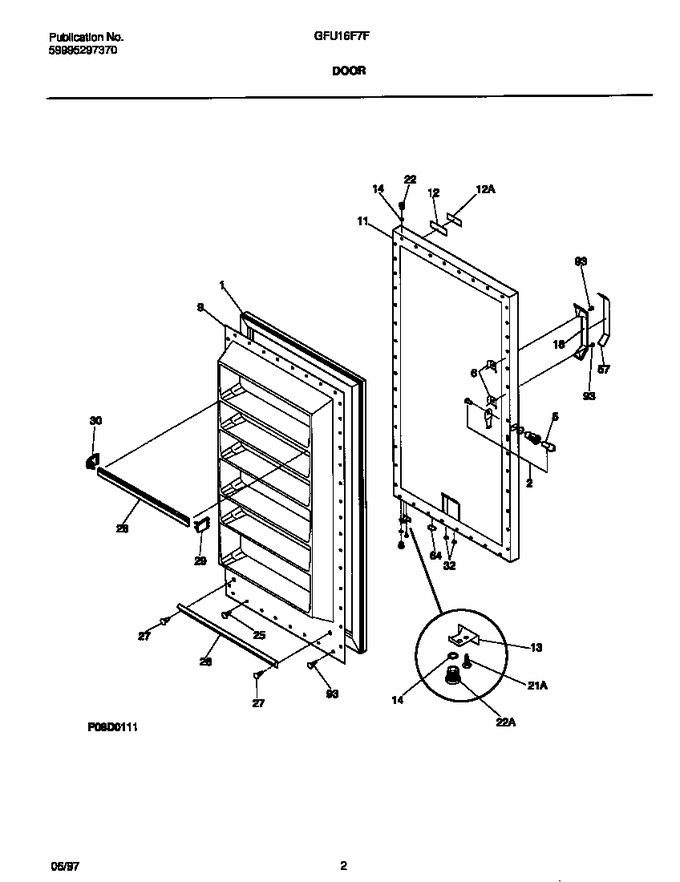

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206251		Gasket Door				$ 303.33
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
6	218990001		Screw-anchor,8-18   (Replaces: 5300158222)				$ 16.30
9	216012908		Panel-inner Door, White		Appelez-nous	-
11	5303925409		Panel-outer Door, White		Appelez-nous	-
12	5303208918		Bezel, Nameplate		Appelez-nous	-
12	5303285573		Insert-bezel		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216446900		Handle,white				$ 52.34
21	08005520		Screw-door Stop		Appelez-nous	-
22	216443600		Bearing				$ 0.68
22	5303210403		Bearing		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
28	5300129683		Rack-shelf, Narrow		Appelez-nous	-
29	216334000		End Cap-rh-rack-door, Narrow, (4)				$ 47.48
30	216334100		End Cap-lh-rack-door, Narrow, (4)				$ 23.39
32	5309950074		Valve-breather, Door				$ 12.48
57	3017682		Insert Handle			Immediately	$ 43.24
64	216403700		Plug-button, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*31440	5303296404		Clip-handle Base				$ 1.68

    View Diagram in Separate Window       Print Part List
