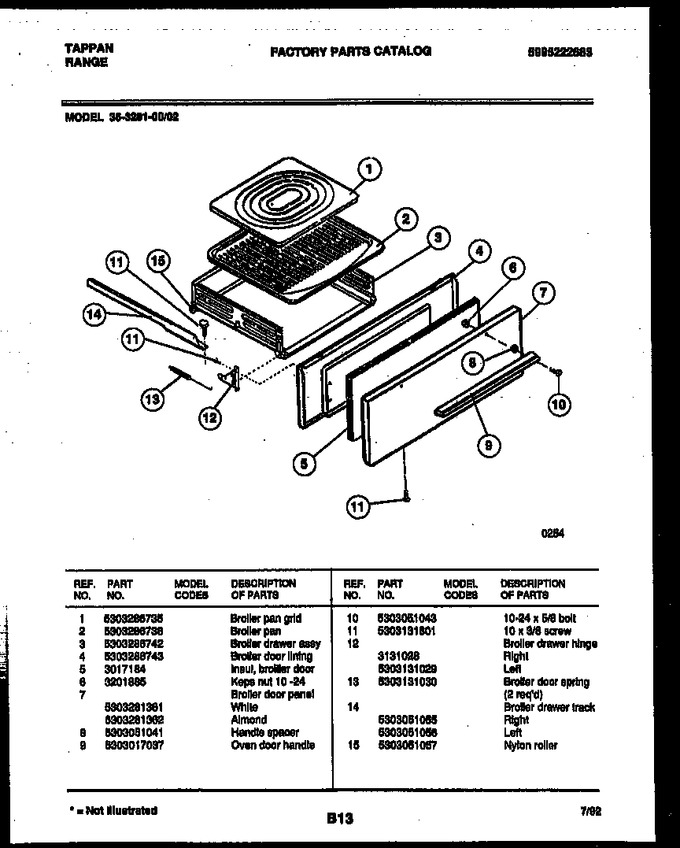

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303286735 | Broiler Pan-grid |
|
- | |||||
| 2 | 5303286736 | Broiler Pan |
|
- | |||||
| 3 | 5303286742 | Broiler Drawer Assy |
|
- | |||||
| 4 | 5303286743 | Broiler Door-lining |
|
- | |||||
| 5 | 3017184 | Insul, Broiler Door |
|
- | |||||
| 6 | 154079601 | Keps Nut 10-24 (Replaces: 3201885) |
|
$ 0.41 | |||||
| 7 | 5303281361 | Broiler Door Panel White |
|
- | |||||
| 8 | 5303051041 | Handle Spacer |
|
- | |||||
| 9 | 5303017037 | Oven Door Handle |
|
- | |||||
| 10 | 5303051043 | 10-24 X 5/8 Bolt |
|
- | |||||
| 11 | 5303131801 | 10 X 3/8 Screw |
|
- | |||||
| 12 | 3131028 | Broiler Drawer Hinge Right |
|
- | |||||
| 13 | 5303131030 | Broiler Door Spring (2 Req`d) |
|
- | |||||
| 14 | 5303051055 | Broiler Drawer Track Right |
|
$ 56.60 | |||||
| 15 | 5303051057 | Nylon Roller |
|
- | |||||
| 12A | 5303131029 | Broiler Drawer Hinge Left |
|
- | |||||
| 14A | 5303051056 | Broiler Drawer Track Left |
|
$ 78.44 |
