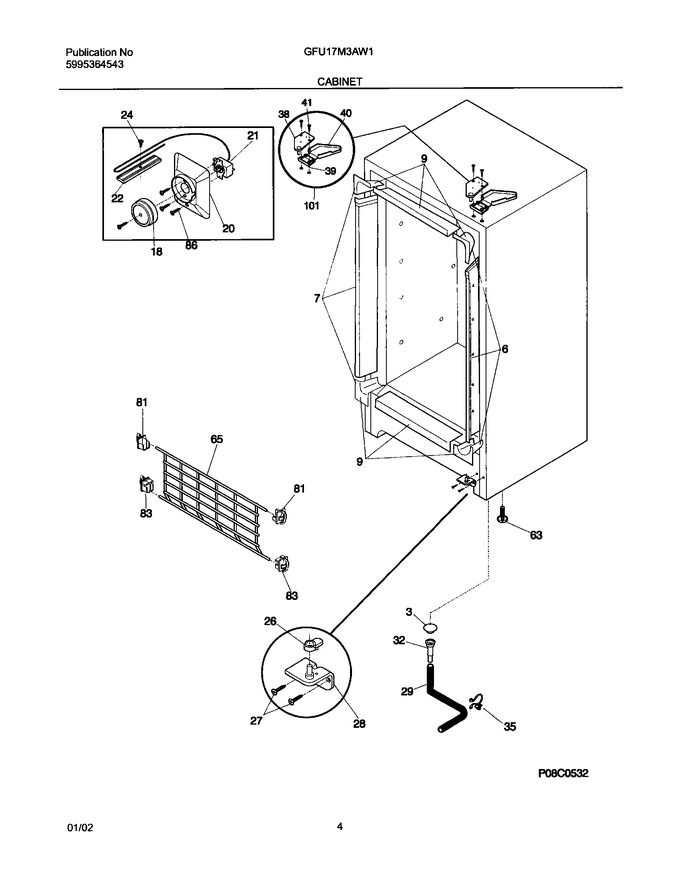

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
6	216604200		Breaker Kit W/corners				$ 227.12
7	216603700		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
18	216707200		Knob-control Cold				$ 44.10
20	216707300		Cover-control Housing		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Drain Hose				$ 22.42
38	216808900		Hinge-upper				$ 92.87
39	5303294372		Nut Insert-hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	241710601		Screw   (Replaces: 5303001479)				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
65	216443500		Drop Front		Appelez-nous	-
81	216571000		Support-drop Front,top				$ 33.55
83	216571100		Support-drop Front,btm		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
101	216835200		Kit-top Hinge				$ 50.99
F21	297216004		Control-temperature   (Replaces: 216788100)			Immediately	$ 53.52
NI	09948773		Insulation, Drain Tube				$ 12.60
