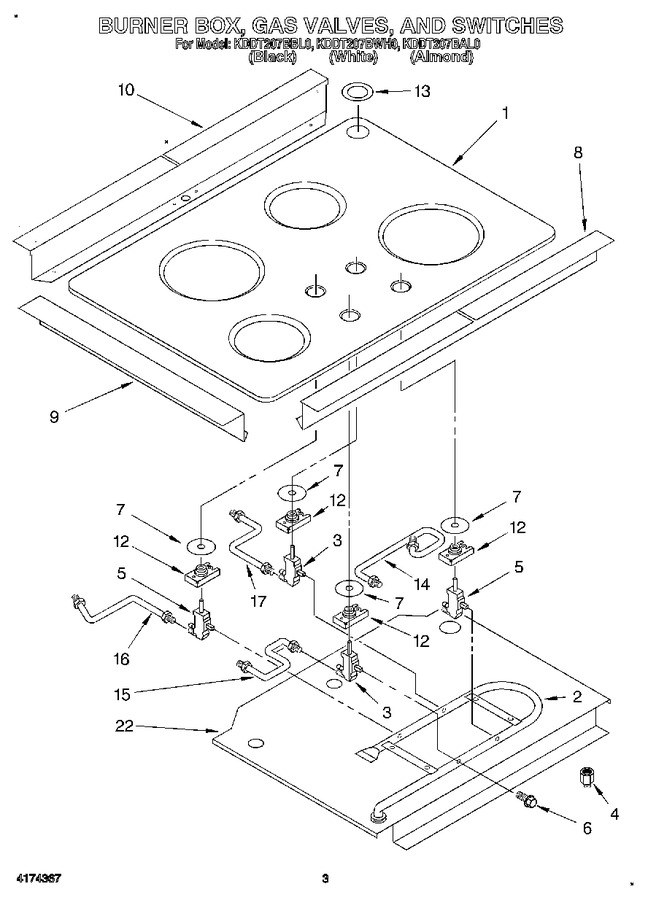

03 - Burner Box, Gas Valves, And Switches


04 - Door And Drawer


05 - Internal Oven


06 - Control Panel


07 - Oven, Literature


08 - Utility Drawer And Rail


09 - Convection Fan


10 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186502		Cover, Top Assy.		Appelez-nous	-
2	3185806		Pipe, Manifold		Appelez-nous	-
3	3185828		Valve, Gas Burner (lf & Rr)		Appelez-nous	-
4	3187000		Fitting, Manifold Pipe		Appelez-nous	-
5	3185827		Valve, Gas Burner (rf & Lr)		Appelez-nous	-
6	3185829		Bolt (gas Valve)		Appelez-nous	-
7	WP3188425		Seal, Shaft (4)   (Replaces: 3185430)				$ 82.61
8	3180696		Frame, Front		Appelez-nous	-
9	4159603		Washer		Appelez-nous	-
9	3185634		Frame, Side (2)		Appelez-nous	-
9	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
9	3148443		Screw (8)		Appelez-nous	-
10	3180670		Frame, Rear		Appelez-nous	-
12	WP3185830		Switch, Gas Burner   (Replaces: 3185830)				$ 93.81
13	3187523		Seal, Tube		Appelez-nous	-
14	3185745		Tubing, Large Gas Burner (rf)		Appelez-nous	-
15	3185744		Tubing, Small Gas Burner (lf)		Appelez-nous	-
16	3185743		Tubing, Large Gas Burner (lr)		Appelez-nous	-
17	3185742		Tubing, Small Gas Burner (rr)		Appelez-nous	-
22	4175461		L.p. Gas Conversion Kit		Appelez-nous	-
22	3184736		Cover, Burner Box		Appelez-nous	-
22	3147758		Protector, Edge Miscellaneous		Appelez-nous	-
