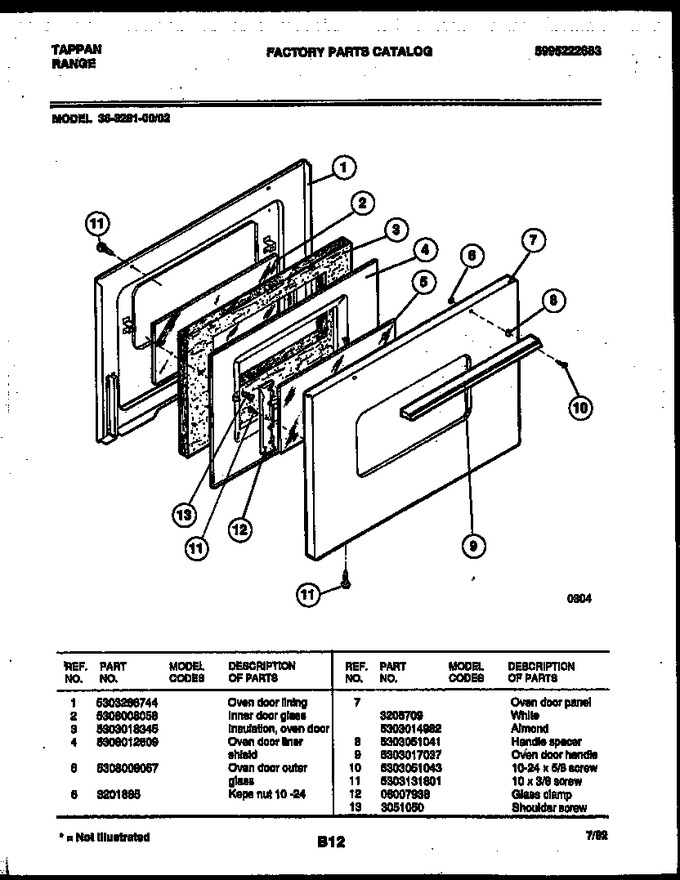

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303286744 | Oven Door-lining |
|
- | |||||
| 2 | 5308008058 | Inner Door Glass |
|
- | |||||
| 3 | 5303018345 | Insulation, Oven Door |
|
- | |||||
| 4 | 5308012609 | Oven Door Liner Shield |
|
- | |||||
| 5 | 5308008057 | Oven Door Outer Glass |
|
- | |||||
| 6 | 154079601 | Keps Nut 10-24 (Replaces: 3201885) |
|
$ 0.41 | |||||
| 7 | 5303014982 | Oven Door Panel Almond |
|
- | |||||
| 8 | 5303051041 | Handle Spacer |
|
- | |||||
| 9 | 5303017037 | Oven Door Handle |
|
- | |||||
| 10 | 5303051043 | 10-24 X 5/8 Screw |
|
- | |||||
| 11 | 5303131801 | 10 X 3/8 Screw |
|
- | |||||
| 12 | 08007938 | Glass Clamp |
|
- | |||||
| 13 | 3051050 | Shoulder Screw |
|
$ 12.29 |
