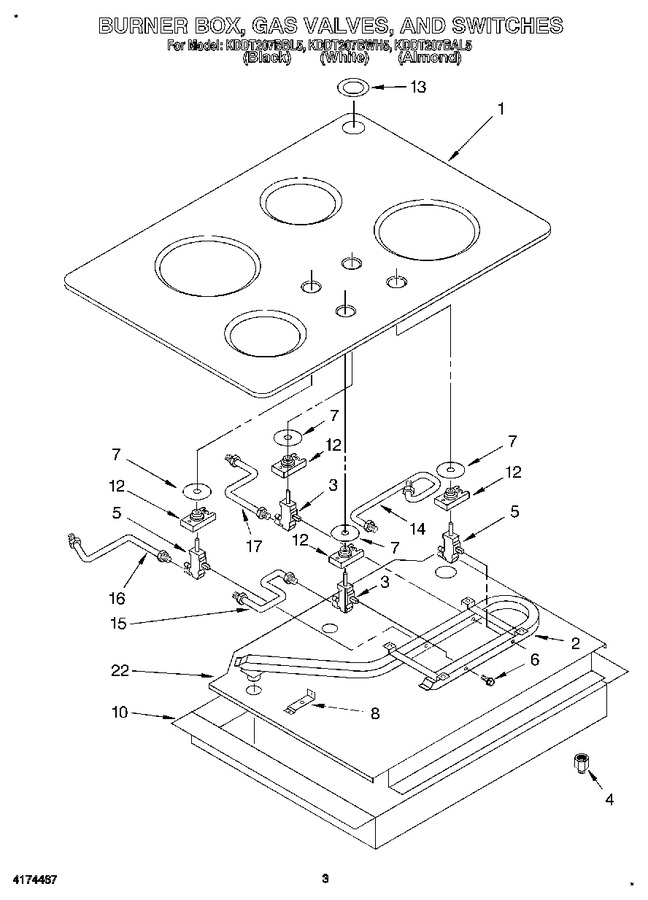

03 - Burner Box, Gas Valves, And Switches


04 - Oven Door


05 - Internal Oven


06 - Control Panel


07 - Oven, Literature


08 - Utility Drawer And Rail


09 - Convection Fan


10 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187710		Cover, Top Assy.		Appelez-nous	-
2	3187442		Pipe, Manifold		Appelez-nous	-
3	3187570		Valve, Gas Burner (lf & Rr)		Appelez-nous	-
4	3187000		Fitting, Manifold Pipe		Appelez-nous	-
5	3187569		Valve, Gas Burner (rf & Lr)		Appelez-nous	-
6	3185829		Bolt (gas Valve)		Appelez-nous	-
7	WP3188425		Seal, Shaft (4)   (Replaces: 3185430)				$ 82.61
8	3188531		Bracket, Manifold		Appelez-nous	-
10	3187708		Box, Cooktop		Appelez-nous	-
12	WP3185830		Switch, Gas Burner   (Replaces: 3185830)				$ 93.81
13	3187523		Seal, Tube		Appelez-nous	-
14	3186689		Tubing, Large Gas Burner (rf)		Appelez-nous	-
15	3186690		Tubing, Small Gas Burner (lf)		Appelez-nous	-
16	3186692		Tubing, Large Gas Burner (lr)		Appelez-nous	-
17	3186691		Tubing, Small Gas Burner (rr)		Appelez-nous	-
22	WPW10339879		Tie, Cable   (Replaces: 3347868)				$ 7.11
22	3188530		Bracket, Mounting		Appelez-nous	-
22	3147758		Protector, Edge		Appelez-nous	-
22	4175461		L.p. Gas Conversion Kit		Appelez-nous	-
22	3149157		Tie, Cable		Appelez-nous	-
