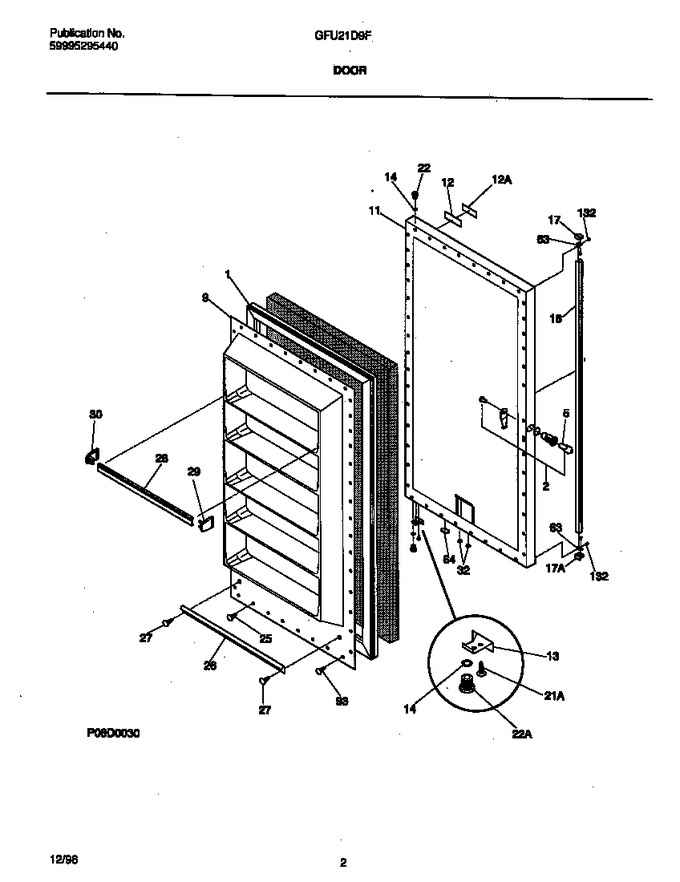

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206261		Gasket Door				$ 254.52
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216048804		Panel-inner Door, White		Appelez-nous	-
11	5303925413		Panel-outer Door Assy, W\foam Insul, White		Appelez-nous	-
12	5303285574		Insert-bezel		Appelez-nous	-
12	5303303586		Bezel,nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
17	3206044		End Cap,white ,bottom		Appelez-nous	-
17	3206043		End Cap,white ,upper		Appelez-nous	-
18	216504200		Handle,aluminum ,blue		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303210403		Bearing		Appelez-nous	-
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
28	216153200		Rack-shelf, White		Appelez-nous	-
29	216334300		End Cap-wide, Lh		Appelez-nous	-
30	216334200		End Cap-wide, Rh				$ 39.80
32	5309950074		Valve-breather, Door				$ 12.48
63	5300119930		Retainer Handle		Appelez-nous	-
64	216403700		Plug-button, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
*36480	5303917276		Insulation				$ 330.91
