SELECT A DIAGRAM

01 - Cover


02 - Door

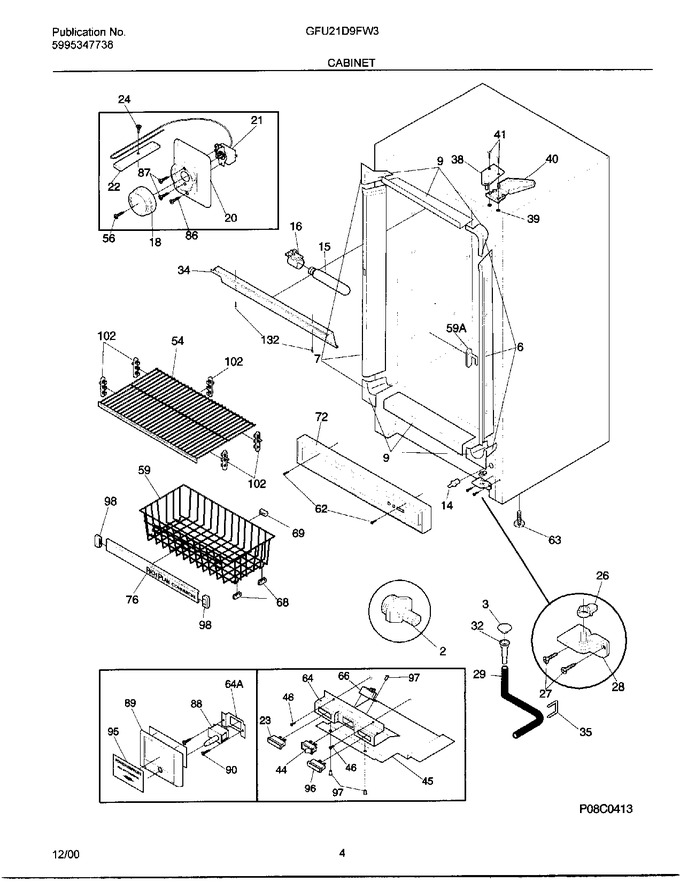

04 - Cabinet


06 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	216269500		Adapter, Drain				$ 14.81
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
18	216591802		Knob,temp Control		Appelez-nous	-
20	5303288184		Cover-control Housing		Appelez-nous	-
22	08037931		Clamp, Cap Tube, Cold Control		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216590800		Shield-light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
45	216523900		Shield-wire		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
54	216077200		Shelf-dry		Appelez-nous	-
56	09950853		Screw, Knob		Appelez-nous	-
59	216157201		Basket		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
64	08016369		Bracket		Appelez-nous	-
66	216713700		Buzzer,alarm				$ 74.60
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
72	216591118		Grille/kickplate,32``				$ 96.44
76	216626101		Trim-basket		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
89	216501000		Bezel-power Defrost,defrost		Appelez-nous	-
90	5303297123		Screw, Th, 8-32 X 2-1/2		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
95	216590700		Bezel-decal		Appelez-nous	-
96	08016772		Light-signal,red		Appelez-nous	-
97	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
98	09950862		End Cap		Appelez-nous	-
102	08016352		Support Shelf,adjustable		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
59A	09948791		Stop, Basket		Appelez-nous	-
62A	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
64A	216009200		Bracket-dfr Switch		Appelez-nous	-
F14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
F15	5304517886		Bulb-light,40w ,130v   (Replaces: 216608600)			Immediately	$ 73.06
F16	5300136117		Socket, Light/lamp				$ 52.46
F21	216260300		Control-temperature		Appelez-nous	-
F23	5308002706		Light-signal,amber				$ 39.11
F44	5303017178		Switch-rocker		Appelez-nous	-
F88	216380500		Switch-defrost		Appelez-nous	-
NI	08037401		Retainer, Wire, Breaker				$ 2.85
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
