SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Top Assembly


07 - Wiring Information

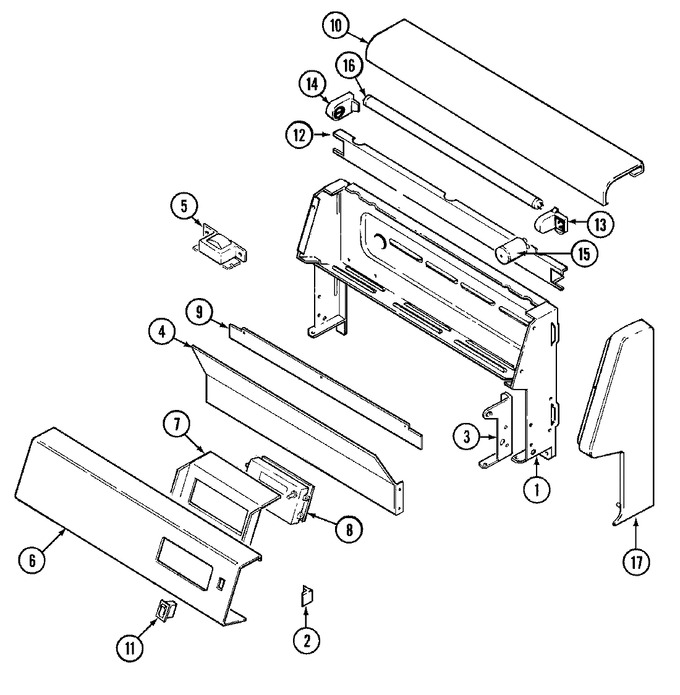

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74002162		Housing, Control Panel	10	Appelez-nous	-
1	74002198		Shield, Heat (gry)	10	Appelez-nous	-
2	WP59002061		Screw, Switch   (Replaces: 7101P148-60)	10			$ 6.98
2	8010P083-60		Spacer	10	Appelez-nous	-
3	3807F454-51		Support, Main Top (lt)	10	Appelez-nous	-
3	3807F453-51		Support, Main Top (rt)	10	Appelez-nous	-
3	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
4	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
4	3604F188-09		Shield, Flue	10	Appelez-nous	-
5	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
5	7412P007-60		Ballast	10	Appelez-nous	-
6	7703P595-60		Panel, Control (wht)	10	Appelez-nous	-
6	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	10		Immediately	$ 6.47
7	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	10		Immediately	$ 6.47
7	74002099		Bracket, Clock	10	Appelez-nous	-
8	74002253		Clock (wht)	10	Appelez-nous	-
8	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
9	8036P003-60		Shield, Sight	10	Appelez-nous	-
9	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
10	74002824		Cover, Receptacle Wires	46	Appelez-nous	-
10	7724P059-60		Cover, Light (wht)----na	10	Appelez-nous	-
10	7724P066-60		Cover, Wire (light)	10	Appelez-nous	-
11	7403P200-60		Switch, Rocker (wht)	10	Appelez-nous	-
12	3807F406-71		Holder, Lamp (wht)	10	Appelez-nous	-
13	7408P029-60		Receptacle, Light (rt)	10	Appelez-nous	-
14	7408P030-60		Receptacle, Snap-in (lt)	10	Appelez-nous	-
15	7415P001-60		Starter	10	Appelez-nous	-
16	WP95292		Light, Control Panel   (Replaces: 7407P004-60)	10		Immediately	$ 121.45
17	7726P074-60		End Cap (lt-wht)	10	Appelez-nous	-
17	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	10			$ 7.68
17	74002797		End Cap, Panel (lt-wht)	25	Appelez-nous	-
17	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
17	74002796		End Cap, Panel (rt-wht)	25	Appelez-nous	-
17	7726P073-60		End Cap (rt-wht)	10	Appelez-nous	-
19	5180D151-60		Harness, Control Panel	10	Appelez-nous	-
19	5185D251-60		Harness, Pedestal	10	Appelez-nous	-
19	5170P204-60		Harness, Sensor & Lock	10	Appelez-nous	-
19	5125A353-60		Wires, Loose (2 Ctrl Panel)	10	Appelez-nous	-
20	8113P066-60		Manual, Use & Care	10	Appelez-nous	-
20	74001712		Manual, Use & Care (korean)	10	Appelez-nous	-
21	16000329		Guide, Quick Ref. - Magic Chef	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
