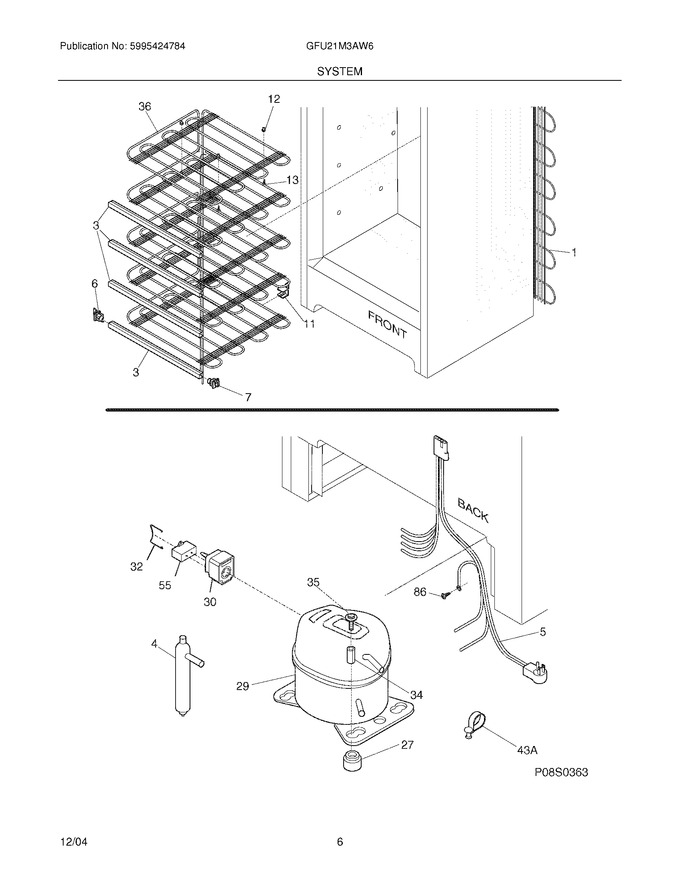

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509723		Trim-shelf,evaporator ,(3)   (Replaces: 216847806)				$ 31.81
6	297001600		Support-shelf,front Lh				$ 18.08
7	297001500		Support-shelf,front Rh				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	5304491585		Controller   (Replaces: 216649315)				$ 95.68
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	5304506302		Evaporator,tubing Assy ,white   (Replaces: 216939800)				$ 324.59
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
43A	216629700		Clip		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F29	216966700		Compressor,w/o Electricals		Appelez-nous	-
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216793400		Harness-ext,main		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-
