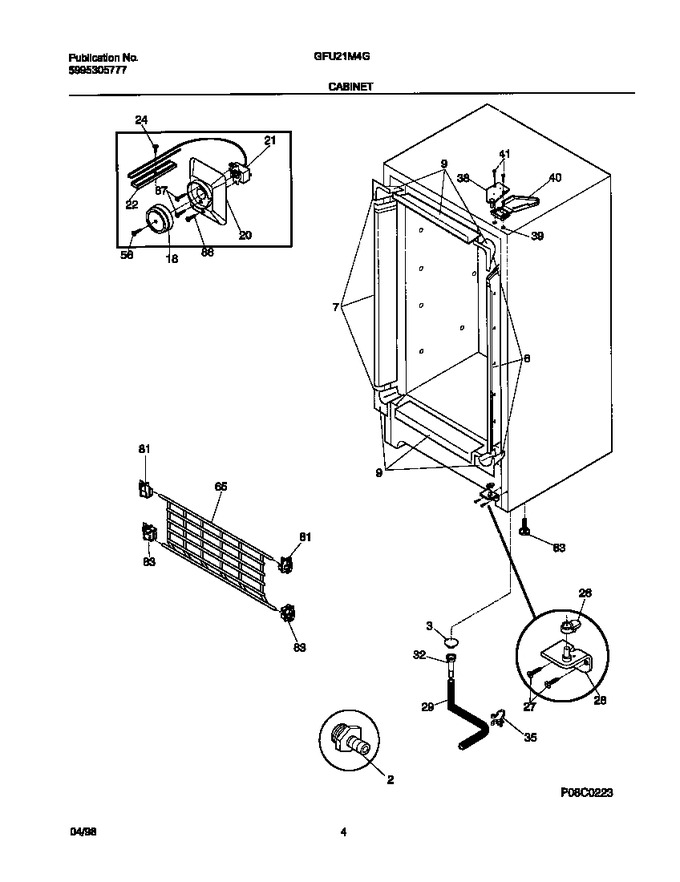

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	216269500		Adapter, Drain				$ 14.81
3	216502600		Plug-drain			Immediately	$ 17.35
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
18	216591802		Knob,temp Control		Appelez-nous	-
20	5303288184		Cover-control Housing		Appelez-nous	-
21	216260400		Control-temperature				$ 178.23
22	08037931		Clamp, Cap Tube, Cold Control		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Drain Hose				$ 22.42
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
56	09950853		Screw, Knob		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
65	216250300		Drop Front		Appelez-nous	-
81	216571000		Support-drop Front,top				$ 33.55
83	216571100		Support-drop Front,btm		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
*77480	09948773		Insulation, Drain Tube				$ 12.60
*77481	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
