SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

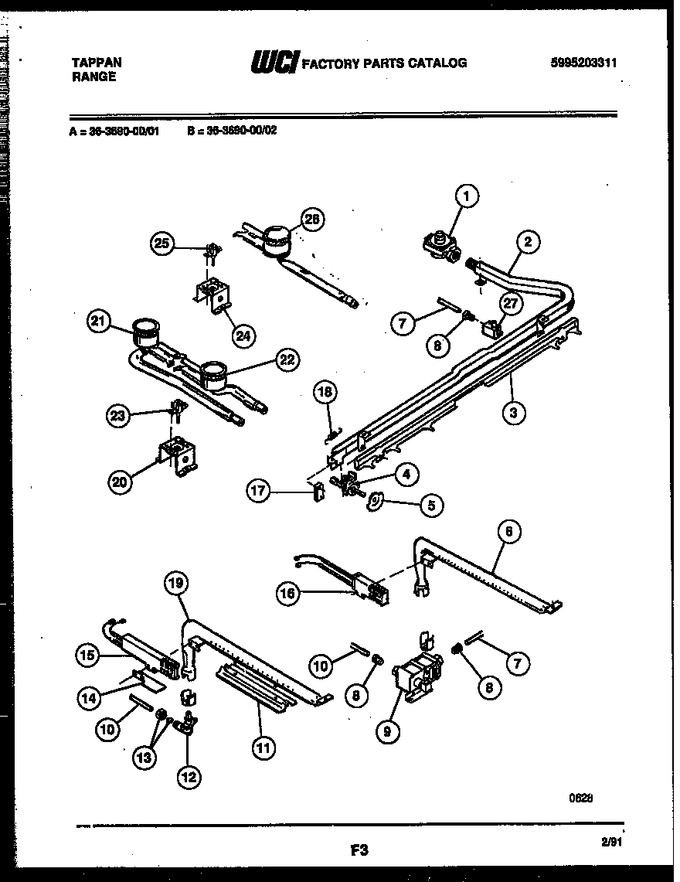

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007974		Pressure Regulator				$ 309.02
2	10867		Manifold Pipe		Appelez-nous	-
3	10806		Bar Slide		Appelez-nous	-
4	3205761		Top Burner Valves (5)		Appelez-nous	-
5	5303131859		Cam Top Burner		Appelez-nous	-
6	5303131860		Oven Bake Burner		Appelez-nous	-
7	08068028		Tube - Oven Feed		Appelez-nous	-
8	08011469		Loxit Nut		Appelez-nous	-
9	5303017415		Safety Valve		Appelez-nous	-
10	3131866		Broil Feed Tube		Appelez-nous	-
11	5308011508		Burner Baffle		Appelez-nous	-
12	5308011470		Pin-elbow Mixer		Appelez-nous	-
13	3131072		Nut & Sleeve		Appelez-nous	-
14	3131871		Shield Oven Ignitor				$ 7.93
15	5303016211		Ignitor Broil		Appelez-nous	-
16	12400035		Ignitor Bake   (Replaces: 5308009420)			Immediately	$ 60.44
17	5303131094		Micro Switch		Appelez-nous	-
18	5303131096		Spring - Slide Bar		Appelez-nous	-
19	3205893		Broil Burner		Appelez-nous	-
20	5303210471		Top Burner Support		Appelez-nous	-
21	5303131079		Top Burner-rear				$ 129.78
22	5303131080		Top Burner-front				$ 76.13
24	5303210472		Griddle Burner Support		Appelez-nous	-
25	5303210549		Ignitor-griddle		Appelez-nous	-
26	3205792		Griddle Burner		Appelez-nous	-
27	5303131099		Shutoff Valve		Appelez-nous	-
*40631	5300009126		Clip		Appelez-nous	-
23A	3203968		Ignitor-lh Burner		Appelez-nous	-
23B	5303210548		Ignitor-rh Burner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
