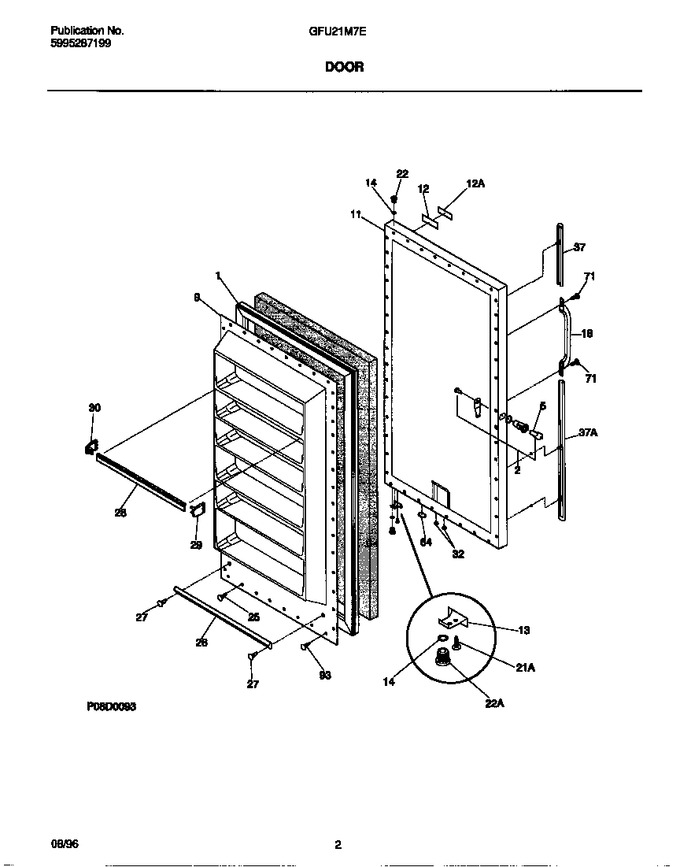

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206261		Gasket Door				$ 254.52
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216048804		Panel-inner Door, White		Appelez-nous	-
11	216413322		Panel-outer Door Assy, W\foam Insul, White		Appelez-nous	-
12	5303211086		Insert-bezel		Appelez-nous	-
12	5303208918		Bezel, Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	218668401		Handle-door, White				$ 74.97
21	08005520		Screw-door Stop		Appelez-nous	-
22	216443600		Bearing				$ 0.68
22	5303210403		Bearing		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	3017670		Trim-basket, Wide, Front		Appelez-nous	-
29	216334300		End Cap-wide, Lh, (1)		Appelez-nous	-
30	216334200		End Cap-wide, Rh (1)				$ 39.80
32	216390000		Breather-air Duct, Door		Appelez-nous	-
37	216477600		Trim-handle, With Snap On, Upper		Appelez-nous	-
37	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
64	216403700		Plug-buttom, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*23960	5303917276		Insulation				$ 330.91
