01 - Cooktop, Burner And Grate

Diagram for 02 - Sealed Gas Assembly
02 - Sealed Gas Assembly

Diagram for 03 - Burner Box, Gas Valves, And Switches

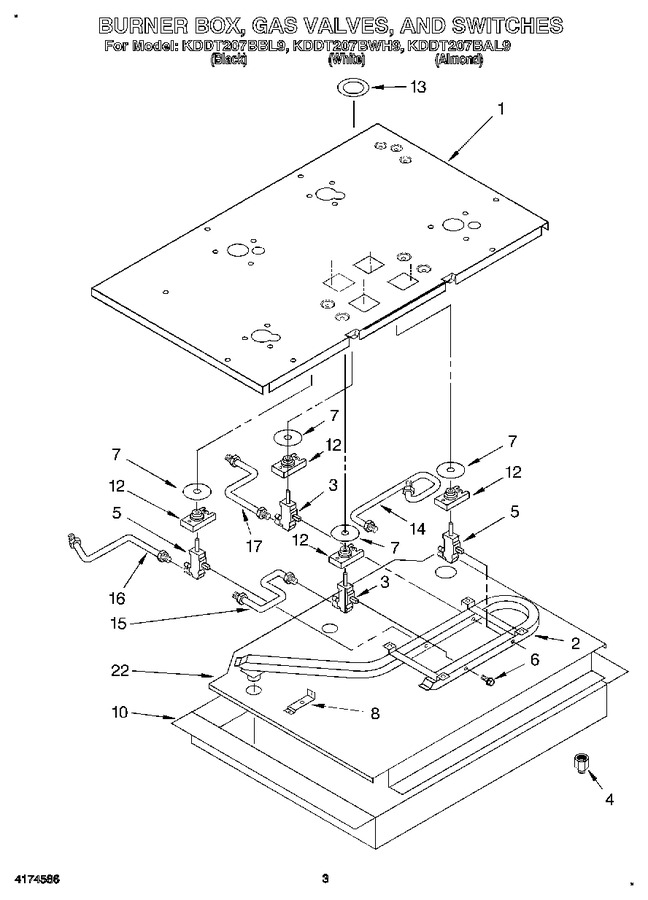

03 - Burner Box, Gas Valves, And Switches

Diagram for 04 - Oven Door
04 - Oven Door

Diagram for 05 - Internal Oven
05 - Internal Oven

Diagram for 06 - Control Panel
06 - Control Panel

Diagram for 07 - Oven, Literature
07 - Oven, Literature

Diagram for 08 - Utility Drawer And Rail
08 - Utility Drawer And Rail

Diagram for 09 - Convection Fan
09 - Convection Fan

Diagram for 10 - Wiring Harness
10 - Wiring Harness


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4454509 Backer, Plate Appelez-nous -
2 3189301 Pipe, Manifold Appelez-nous -
3 3185828 Valve, Gas Burner (lf & Rr) Appelez-nous -
4 3187000 Fitting, Manifold Pipe Appelez-nous -
5 3185827 Valve, Gas Burner (rf & Lr) Appelez-nous -
6 3185829 Bolt (gas Valve) Appelez-nous -
7 WP3188425 Seal, Shaft (4)   (Replaces: 3188425) Special Order $ 82.61

8 3188531 Bracket, Manifold Appelez-nous -
8 4159603 Washer Appelez-nous -
10 3187708 Box Burner Appelez-nous -
12 WP3185830 Switch, Gas Burner   (Replaces: 3185830) Special Order $ 93.81

13 3187523 Seal, Tube Appelez-nous -
14 3186689 Tubing, Large Gas Burner (rf) Appelez-nous -
15 3186690 Tubing, Small Gas Burner (lf) Appelez-nous -
16 3186692 Tubing, Large Gas Burner (lr) Appelez-nous -
17 3186691 Tubing, Small Gas Burner (rr) Appelez-nous -
22 3147758 Protector, Edge Appelez-nous -
22 3188530 Bracket Cooktop Appelez-nous -
