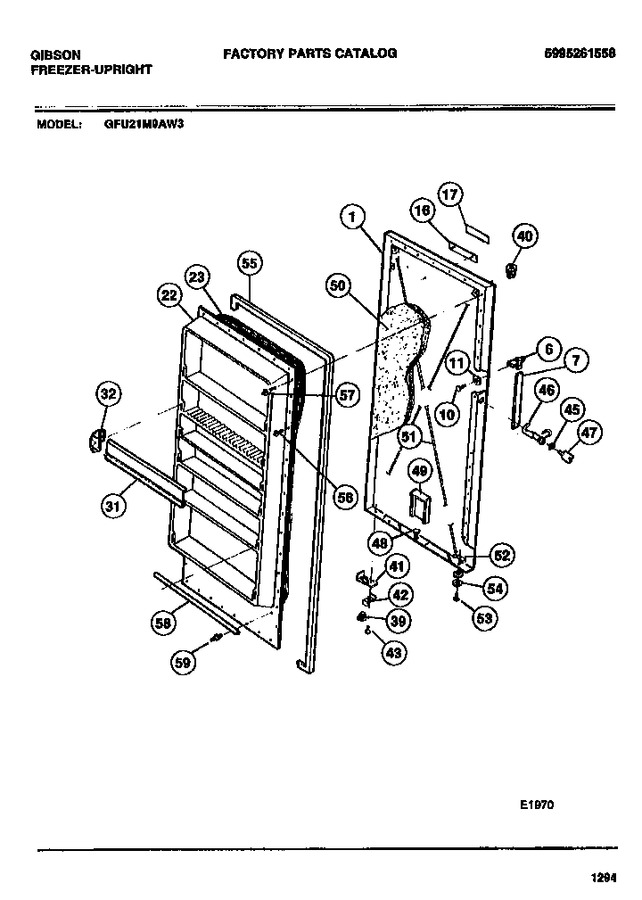

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Liner & Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206056		Panel-door, White		Appelez-nous	-
6	3206058		Handle End Cap		Appelez-nous	-
7	5303208942		Grip Handle-blue		Appelez-nous	-
10	08016582		Screw-handle		Appelez-nous	-
11	08016593		Washer Handle Screw		Appelez-nous	-
16	5303303586		Frame-nameplate		Appelez-nous	-
17	5303285574		Insert-nameplate		Appelez-nous	-
22	216048807		Panel-inner-white		Appelez-nous	-
23	09950831		Insulation Door		Appelez-nous	-
31	216153200		Shelf Front Wide (5)		Appelez-nous	-
31	216153100		Shelf Front Blue (1)		Appelez-nous	-
32	216340100		End Cap-lh Wide (6)		Appelez-nous	-
32	216340000		End Cap-rh Wide (6)		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement Dr Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216323600		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037986		Wire, Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206261		Gasket-door (white)				$ 254.52
56	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw, Panel (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303212828		Clip, Gasket (5)				$ 16.63

    View Diagram in Separate Window       Print Part List
