SELECT A DIAGRAM

01 - Cover


02 - Door

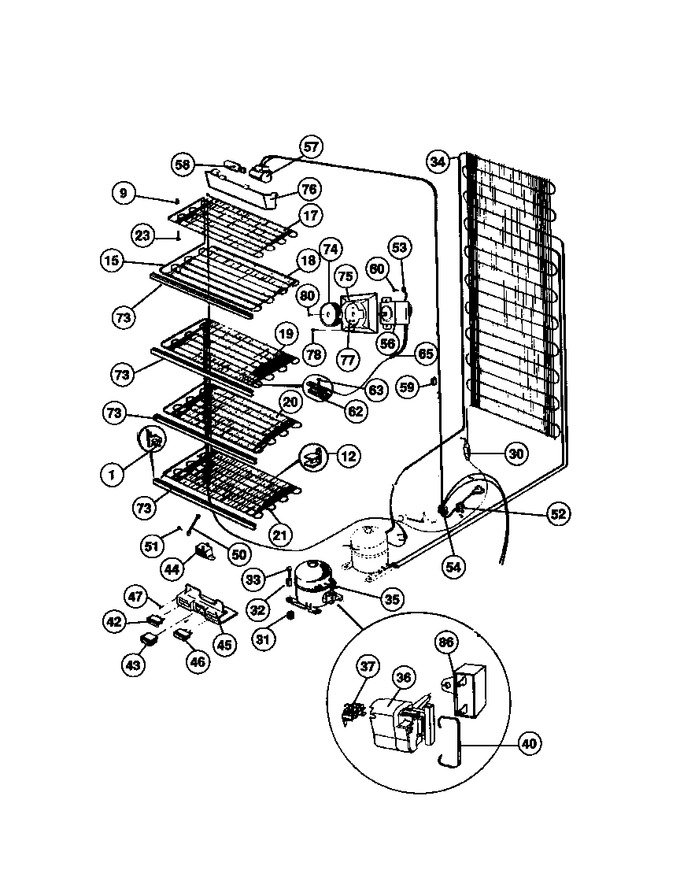

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297001500		Support Front-rh (4)   (Replaces: 08037928)				$ 18.08
9	216109800		Spcr-top Grid Front (3)		Appelez-nous	-
12	09949960		Support, Rear		Appelez-nous	-
15	5308010744		Heat Exchanger		Appelez-nous	-
17	5304506302		Top Grid   (Replaces: 216070900)				$ 324.59
18	5304506302		First Shelf   (Replaces: 216071000)				$ 324.59
19	216071100		Second Shelf		Appelez-nous	-
20	5304506302		Third Shelf   (Replaces: 216071200)				$ 324.59
21	5304506302		Bottom Shelf   (Replaces: 216071300)				$ 324.59
23	216138900		Screw Top Grid				$ 3.31
30	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
31	216498900		Grommet   (Replaces: 5308002681)				$ 13.01
32	5306594529		Sleeve				$ 10.34
33	5303272328		Screw				$ 10.34
34	5300083897		Condenser				$ 538.37
35	216241500		Compressor		Appelez-nous	-
36	216008900		Relay		Appelez-nous	-
37	5303206836		Overload		Appelez-nous	-
40	215012000		Clamp				$ 2.63
42	5308002706		Signal Light-amber				$ 39.11
43	5303017178		Switch		Appelez-nous	-
44	08016367		Buzzer		Appelez-nous	-
45	08016369		Bracket-alarm		Appelez-nous	-
46	08016772		Signal Light-red		Appelez-nous	-
47	08037851		Screw				$ 3.57
50	06594651		Wire, Ground		Appelez-nous	-
51	08009412		Screw		Appelez-nous	-
52	5303017718		Clamp Service Cord		Appelez-nous	-
53	5300125347		Ground Wire		Appelez-nous	-
54	216234300		Wiring Harness		Appelez-nous	-
56	216150400		Control-temp		Appelez-nous	-
57	5300136117		Light Socket				$ 52.46
58	5303091423		Light Bulb		Appelez-nous	-
59	08037401		Retainer Harness (5)				$ 2.85
60	08009412		Screw		Appelez-nous	-
62	08037931		Clamp-capillary		Appelez-nous	-
63	5300052943		Screw Capillary Clamp				$ 5.30
65	5308037932		Sleeve Control Cap Tube		Appelez-nous	-
73	216097900		Front-shelf (4)		Appelez-nous	-
74	216008706		Knob-control-blue		Appelez-nous	-
75	5303288184		Housing Cold Control		Appelez-nous	-
76	5303292007		Shield-light (plastic)		Appelez-nous	-
77	08003539		Screw Control To Cover		Appelez-nous	-
78	5300050149		Screw Cover To Liner		Appelez-nous	-
80	09950853		Screw, Knob		Appelez-nous	-
86	5304464438		Run Capacitor   (Replaces: 216236200)			Immediately	$ 35.38
*80721	297001600		Support-front Lh (4)   (Replaces: 3091418)				$ 18.08
*80722	5303297075		Shield, Bracket		Appelez-nous	-
*80723	5303286749		Wire Harness-alarm		Appelez-nous	-
*80724	216159300		Shield-wires		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
