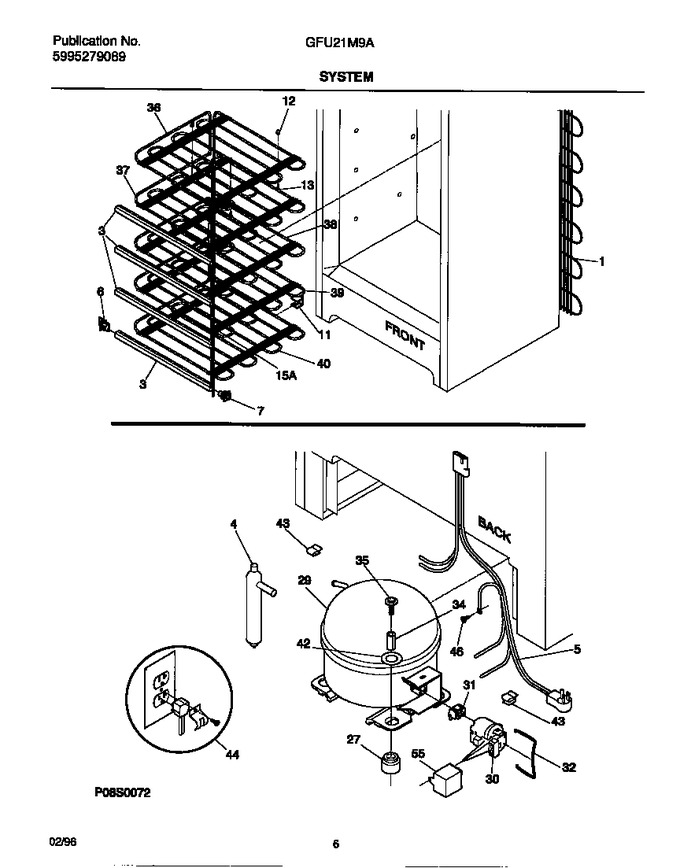

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
3	216097900		Trim, Shelf, Evaporator		Appelez-nous	-
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216234400		Harness-wire		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216225600		Support-rear Shelf		Appelez-nous	-
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
15	216401500		Heat Exchanger				$ 294.47
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304511983		Compressor   (Replaces: 5303925357)				$ 671.86
30	216008900		Starter-ptc		Appelez-nous	-
31	216100104		Overload Protector		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Lnd Hex Sems, 1/4-28 Unfx, Compressor				$ 10.34
36	5304506302		Grid-top Evaporator   (Replaces: 216070900)				$ 324.59
37	5304506302		Shelf-top Evaporator   (Replaces: 216071000)				$ 324.59
38	216071100		Shelf-middle Evaporator		Appelez-nous	-
39	5304506302		Shelf-third Evaporator   (Replaces: 216071200)				$ 324.59
40	5304506302		Shelf-bottom Evaporator   (Replaces: 216071300)				$ 324.59
42	5303298960		Spacer, Compressor		Appelez-nous	-
43	09950610		Clip		Appelez-nous	-
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
*14525	05878556		Clip, Compressor Wire		Appelez-nous	-
