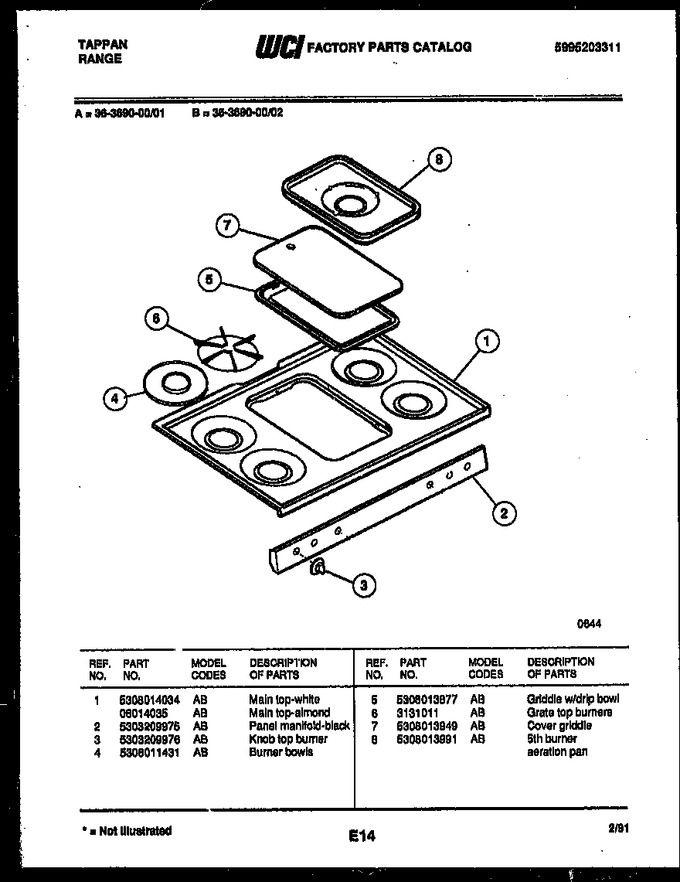

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014035 | Main Top, Almond |
|
- | |||||
| 2 | 5303209975 | Panel Manifold-black |
|
- | |||||
| 3 | 5303209976 | Knob Top Burner |
|
- | |||||
| 4 | 5308011431 | Burner Bowls |
|
- | |||||
| 5 | 5308013877 | Griddle W/drip Bowl |
|
- | |||||
| 6 | 3131011 | Grate Top Burners |
|
- | |||||
| 7 | 5308013949 | Cover Griddle |
|
- | |||||
| 8 | 5308013991 | 5th Burner Aeration Pan |
|
- |
