SELECT A DIAGRAM

01 - 34526p Transmission Assy


02 - Agitator/drive Bell/seal Kit/tub & Hub

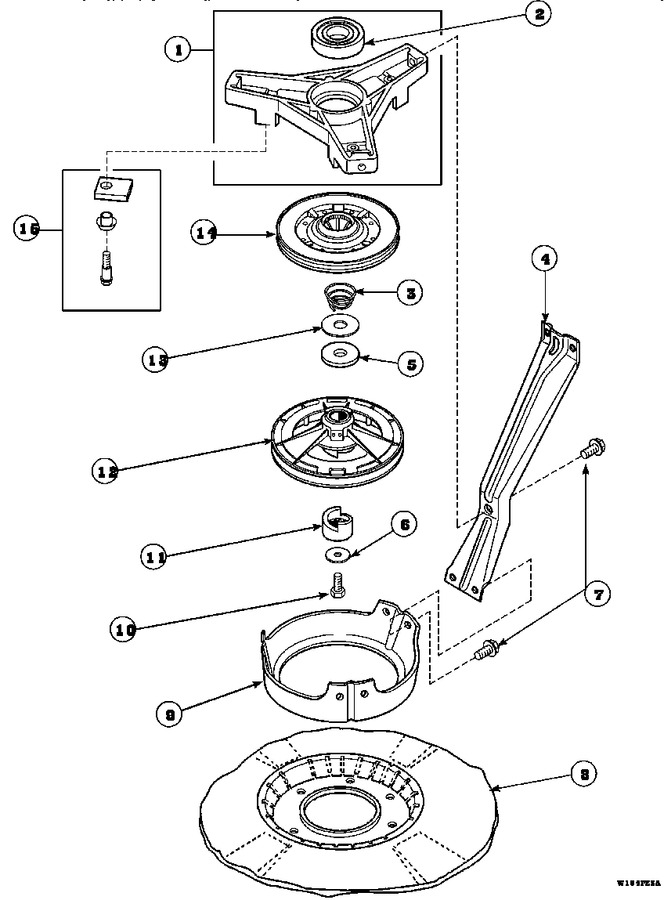

03 - Brg Hsg/brake/pulley & Pivot Dome


04 - Cab Top/loading Dr & Ctrl Hood Rear Pan


05 - Drain Hose And Siphon Break


06 - Front Panel, Base Assy And Cabinet Assy


07 - Graphic Panel, Ctrl Mtg Plate And Ctrls


08 - Graphic Panel, Ctrl Mtg Plate And Ctrls


09 - Graphic Panel, Ctrl Mtg Plate And Ctrls


10 - Inlet/fill Hose/mixing Vlv & Mtg Brkt


11 - Mixing Vlv, Conn Blocks, Term, Extractor


12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


13 - Outer Tub/outer Tub Cover & Press Hose


14 - Out-of-balance Switch


15 - Power Cord And Terminals


16 - Special Tools


17 - Special Tools


18 - Terminals


19 - Transmission Assy And Balancing Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35746		Assy,bearing Housing-l				$ 112.35
2	28944RP		Bearing   (Replaces: 28944R)			Immediately	$ 34.88
3	33435		Spring,conical				$ 9.63
4	34471		Leg,support				$ 6.42
5	27015		Washer			Immediately	$ 6.95
6	26509		Washer				$ 6.95
7	35369		Screw			Immediately	$ 6.95
8	36599P		Assy Nut/ Leg Base		Appelez-nous	-
9	34470		Dome,pivot				$ 41.68
10	27220		Screw				$ 2.30
11	8530072		Helix   (Replaces: 27018)				$ 35.31
12	34921		Assy,pulley-spin & Agitate				$ 58.57
13	35535		Washer				$ 6.95
14	31961P		Brake		Appelez-nous	-
15	548P3		Brake Pad Kit				$ 43.40
NI	WP26594P		Grease, Silicone - 2oz Tube   (Replaces: 26594P)				$ 75.86

    View Diagram in Separate Window       Print Part List
