View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

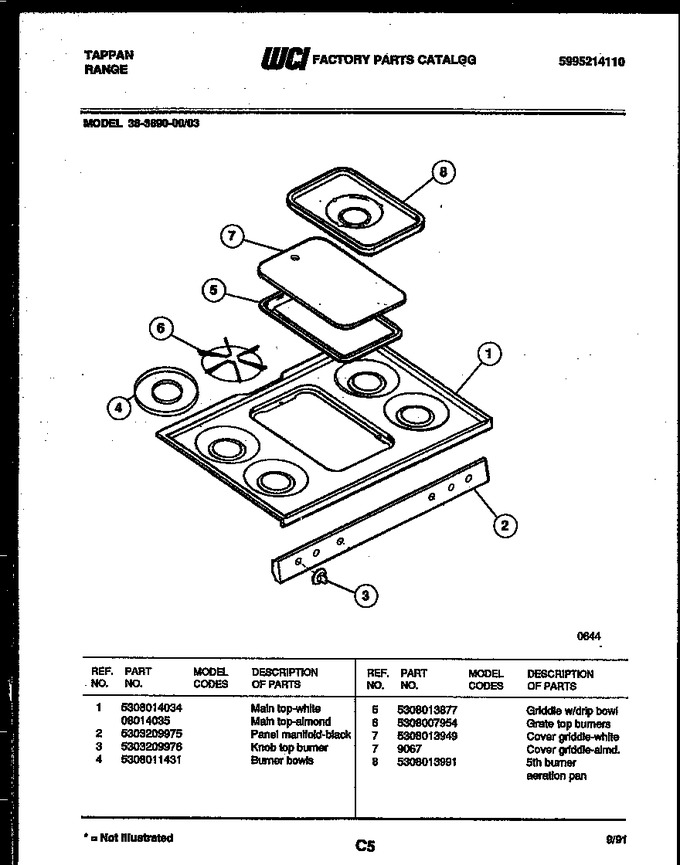

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014035 | Main Top, Almond |
|
- | |||||
| 2 | 5303209975 | Panel Manifold-black |
|
- | |||||
| 3 | 5303209976 | Knob Top Burner |
|
- | |||||
| 4 | 5308011431 | Burner Bowls |
|
- | |||||
| 5 | 5308013877 | Griddle W/drip Bowl |
|
- | |||||
| 6 | 5308007954 | Grate Top Burners |
|
- | |||||
| 7 | 9067 | Cover Griddle-almd |
|
- | |||||
| 8 | 5308013991 | 5th Burner Aeration Pan |
|
- |
